Hydraulic guillotine shears simplest use of the market, offered with a wide range of facilities .
All essential settings to quality and cutting precision are grouped on the front of the machines.
chip Self-certification "CE"

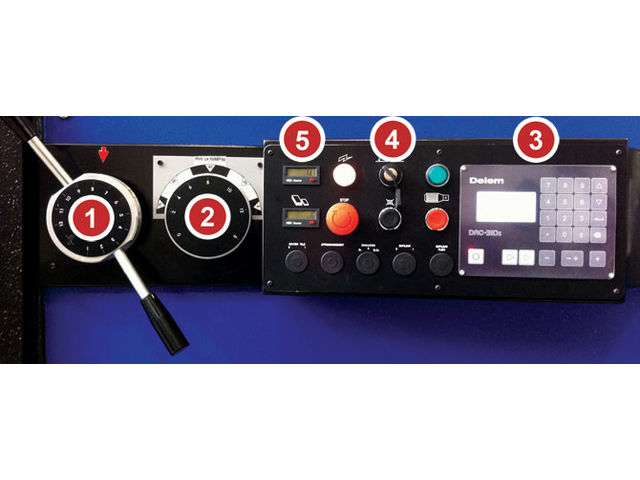

Control panel :
1 - Synchronized adjustment blade clearance on the front side of the machine
2 - Hydraulic adjustment of the cutting angle
3 - Numerical control DELEM DAC 310 s allowing operation in display mode, automatic positioning mode with backlash, the ability to program up to 100 steps, the repetition of steps, management of the cutting length, the decline Automatic backstop rule when cutting and a coin counter mode
4 - direct cut selector or the delimitation and acknowledgment button in case of bad positioning of the sheet metal
5 - daily totalizer and cutting Counters

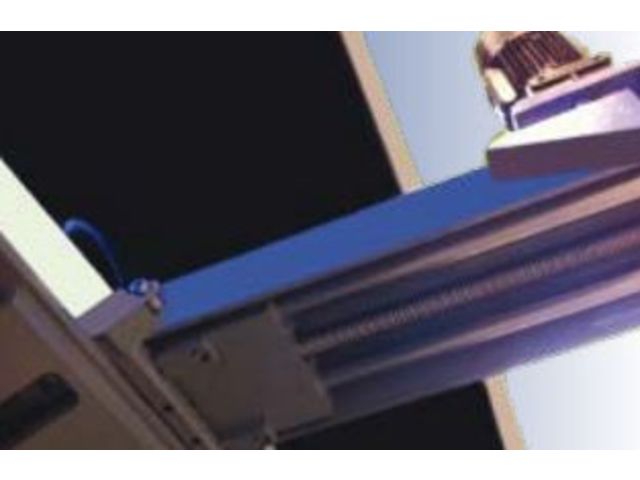

backstop :
Support arm with double guide column and drive ball screw, belt synchronous and asynchronous motor
Automatic deletion of the stop ruler at the stroke end for cutting sheet formats exceeding 1000 mm
sheet discharge blows to the back

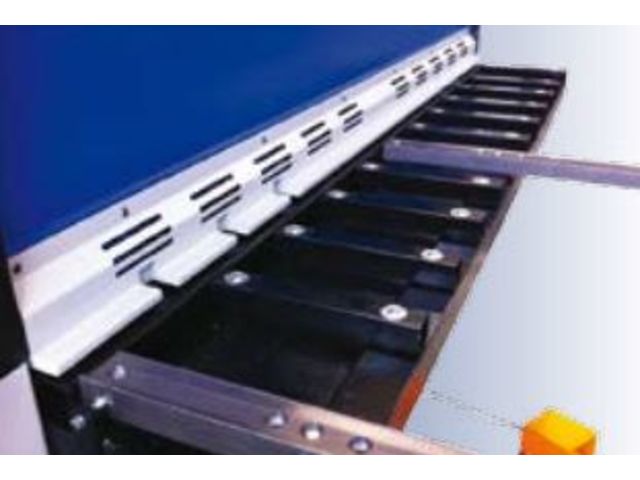

table before :
Log handling
finger protection with notches for cutting small-sized metal sheets
wire and lighting of the cutting line for cutting the drawn
blades 4 cutting edges
options :
Square rule 1, 1.5, 2 or 3 m
Console 1, 1.5, 2 or 3 m
stopper retractable
stop retractable with micrometric adjustment
adjustable stop
Worktop with log handling
Serre sheet for brittle sheet
Hour Meter
clearance adjustment between motorized blades and managed by the numerical control DELEM DAC 310 s
motorized rear stop motor "brushless" (moving speed of the rear stop rule 100 mm / s)
digital control DELEM DAC 360 s stem-mounted enables the automatic adjustment of the clearance between blades, the cutting angle, the position of backstop rule, the sequence of sequences according to the programmed pieces ...
