Hydraulic Shear - KHT 3206 M

• machine frame and cutter bar are designed with extremely solid, carefully machined weldment structures to withstand highest loads
• The frame is produced in a state-of-the-art semi-automatic welding process and treated for thermal stress relief
• The proven swing beam design allows small knife angles for maximum cut quality and minimum distortion at the workpiece
• Kerf setting can be accomplished manually via a centrally located operator hand-wheel
• Hydraulic components by Bosch / Rexroth with renown reliability and function

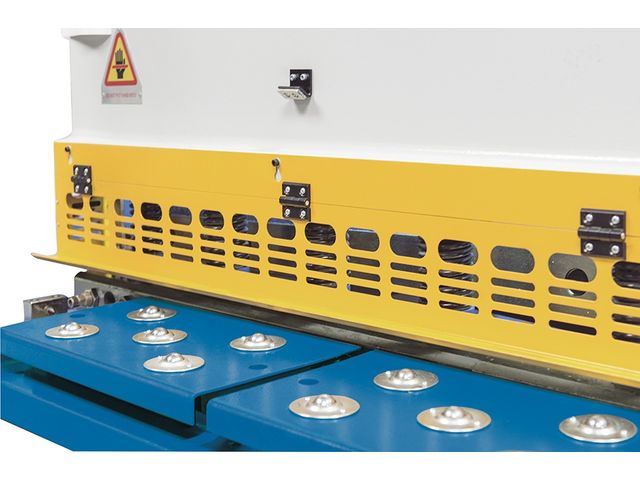

• hydraulically controlled hold-downs ensure evenly distributed down-pressure over the entire cut length

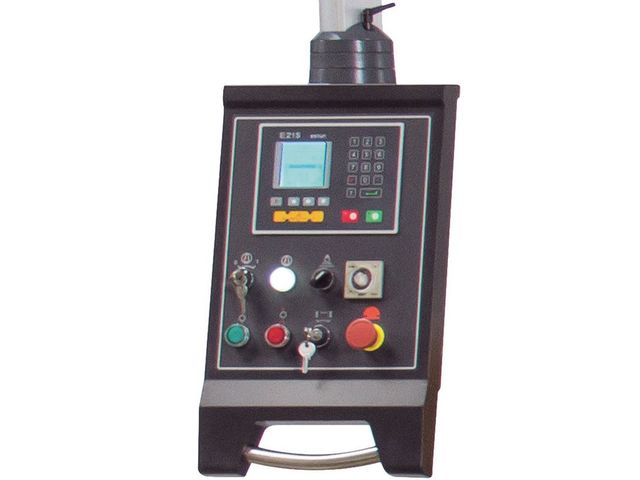

• E-21 S Estun NC positioning control of rear stop for quick sand safe work and high accuracy
• Rear stop precision is ensured by HIWIN preloaded ball screws
• Cut line lighting ensures exact alignment by shadow graph
• infinitely adjustable cut length saves valuable time when producing small parts
• Main drive motor for hydraulic pump by Siemens
• Reliable and efficient electrical components by Schneider Electric
• Upper knife with 2 cutting edges, lower knife with 4 cutting edges (6CrW2Si)
• Performance specs listed in the table (Specifications) apply to hot-rolled ST42 sheet steel

Hydraulic swing-beam shears of this series are available on request with a cutting capacity of 4 - 16 mm and cutting lengths from 2500 - 8000 mm, Maximum cutting capacity of 20 mm is achieved with cutting lengths up to 6000 mm; up to 3200 mm lengths allow material thicknesses of 40 mm.
