Inclinometer NBT/S3 SIL2/PLd TWK-ELEKTRONIK GmbH

Inclinometer NBT/S3 SIL2/PLd

Inclinometers

Vote

Ask for a quote Receive Documentation Contact the supplier

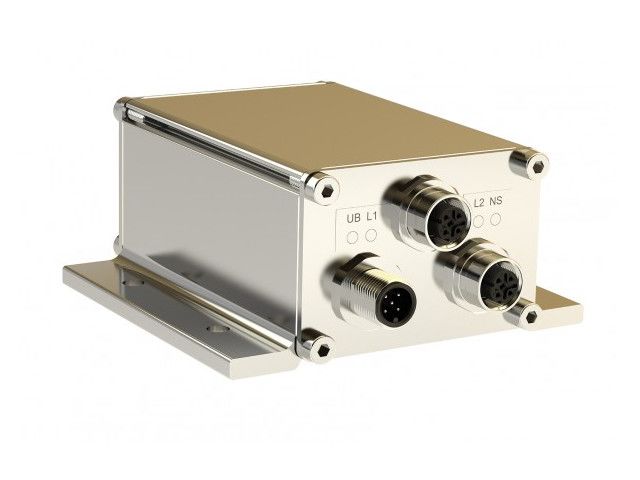

The inclinometer measures the inclination in the gravitational field by means of MEMS sensors (Micro-Electro-Mechanical-System) with subsequent digitisation and linearisation via controllers. It has a stable aluminium housing (optionally stainless steel) and is highly-resistant to vibration and shock. Casting measures in the housing lead to the achievement of protection class IP 69K. The NBT has a redundant MEMS sensor system, which is used to make a plausibility check inside the inclinometer. Only one position datum is output; the plausibility of this is checked using the second system's position datum. Is the deviation of the two systems higher than a certain value, the sensor will enter the failsafe state.

Interface: PROFIsafe over PROFINET Housing material: Aluminium AIMgSi 1, Stainless steel Special feature: SIL2/PLd Design: 65mm, 90mm Profile: PROFIsafe, SIL2 Electrical connection: Cable, Device connector M12
Download the complete technical features
