Innovative, air-cooled UV LED : VZX 22W/cm² UV LED

The VZX is a groundbreaking innovation  with 22W/cm² of super high dose UV outputbringing air cooled LED technology into the domain only previously possible with water cooling techniques. The VZX is especially suited to high speed single pass applications in graphics or industrial applications. In recent years the Integration Technology MZ, SZ and VZ products have been established as some of the world’s leading UV curing systems for inkjet and wider applications. Now Integration Technology is introducing the next generation of the family; the VZX.

The Research and Development team at ITL have used all of the proven features and benefits of their existing LED systems and refined them to new levels in a market leading new air-cooled UV LED Curingdevice. When compared to the older generation of LED systems, remarkable progress has been made in the drying performance of the VZX.

By combining and integrating ITL’s latest XT8 high efficiency array and VARIcool technologies, the VZX enables users to achieve higher efficiency and more output in terms of both intensity and dose.

High-performance LEDs

The VZX is ready to use immediately after switch on, there is no warm-up or cooling times, which saves both time and energy. LEDs have a long service life of greater than 20,000 hours, and in addition modules in the VZX can be easily replaced if required for either upgrade or servicing.

Available wavelengths: standard 395nm, or alternative wavelengths of 365nm, 385nm, 405nm, or mixed wavelength arrays are available on request.

Warranty

Integration Technology grants a warranty of five years on each XT8 LED module. Older systems can also be upgraded with the XT8 technology, then this warrantyalso applies to those modules.

High Flexibility

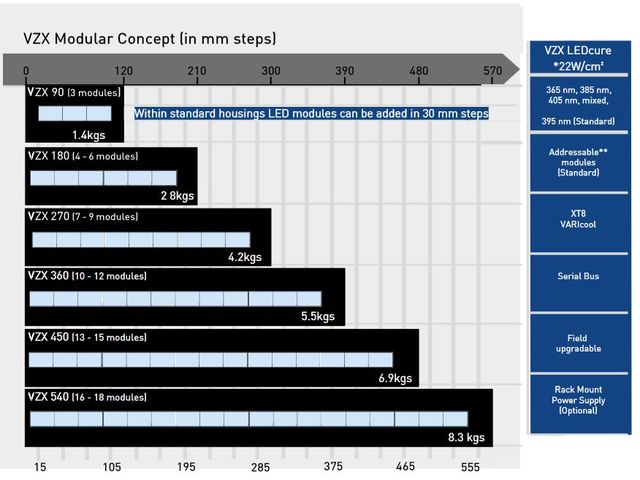

The VZX is specifically designed for the needs of high speed single pass applications in graphics or industrial applications with up to 22W/cm² of output*. The modularity of VZX allows to fully customize the system in a single housing greatly simplifying cabling. Sizes of housings are specially designed to fit in all different models of printers with bus connectivity available as standard. According to the print width, LED arrays can be switched on/off (Addressability**) or added inside the housing in 30 mm steps.
