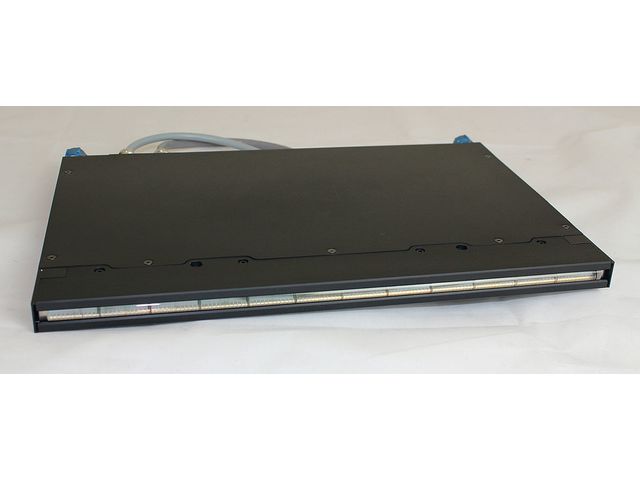

Pincure C & CX UV LED offers a powerful solution in a compact water cooled package for ultimate high speed pinning between inkjet print heads. The Pincure C deli-vers variable output up to 3.5W/cm² while the CX model delivers variable output up to 10W/cm² for heavy pinning of dense white inks.
The proven optics of the original Pincure model (which eliminates the risk of UV light damage to the print head nozzle plates) has been further enhanced, and in Pincure C series is now housed within a clever design which prohibits media contact and contamination to the lens.
The complete modular concept allows configuration in a single piece lamphead to unlimited length in steps of either 30mm (CX) or 40mm (C) greatly simplifying the incoming electrical connections.
With XT8 UV LED Booster technology, the system reaches an extremely high output and dose which greatly increases cure speeds offering customers a wider choice in all applications. An extended service life is achieved since the semi-conductor chips are not being driven as hard when compared to other products on the market. The 30% boost in efficiency is available for systems fitted with 365, 385, 395 or 405 nm.
