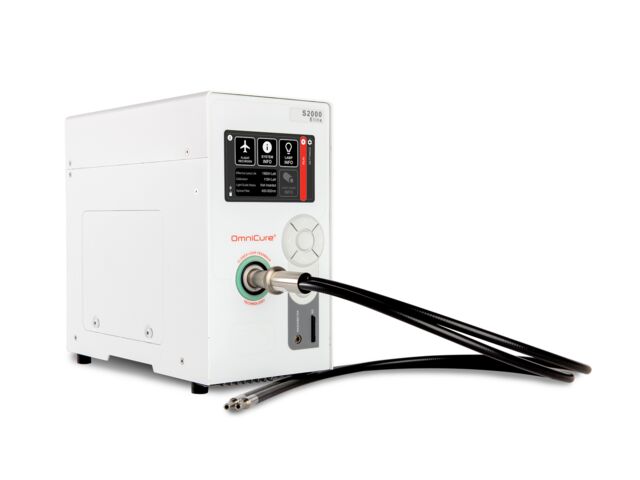

Omnicure S2000

UV lamp

Vote

“ - 70% improvement of shutter activation latency increasing productivity, especially for high volume manufacturing - Download customized multi-phase cure profiles directly to the unit. No need for a permanently connected PC - Provides trigger signal versatility by selecting either edge or level modes - Lower operating costs - Maintain optimum operating condition, stable lamp output, longer lamp life, accumulated lamp hours - Special lamp technology for acrylic adhesives provides a tack-free surface cure - Automatically maintains a constant output for a repeatable curing process - Beneficial for automated assembly processes - Allowing very precise control of output - Calibrate and set absolute irradiance levels wirelessly from a single reference point ”

Ask for a quote

Presentation

Recognized as the global leader in bonding systems for precision assembly with light-cured adhesives, the OmniCure® S2000 provides the power, control and repeatability required for high-speed automated manufacturing assembly.
Offering a powerful 200 Watt lamp with a guaranteed life of 2000 hours, the OmniCure®S2000 also offers Closed-

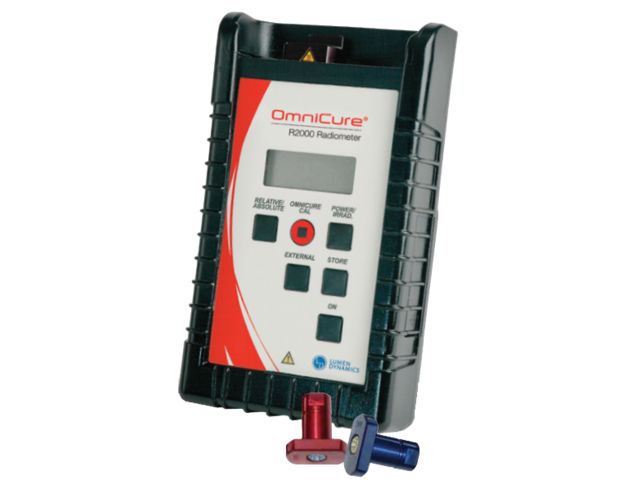

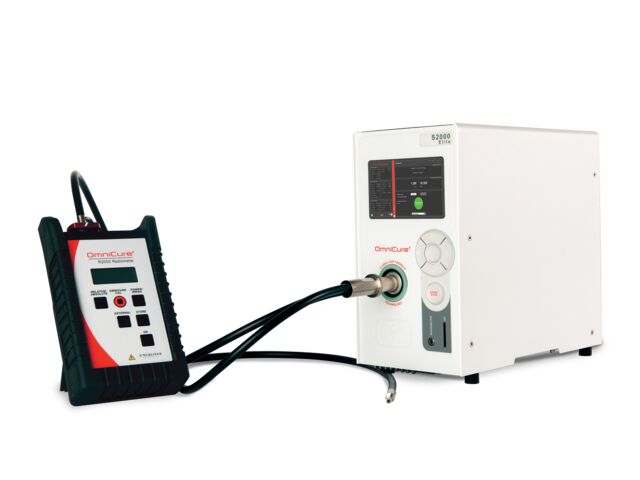

Loop Feedback technology and a flexible PC software interface for computer-controlled operation. When combined with OmniCure®’s R2000 Radiometer, the OmniCure®S2000’s precision and reliability is unmatched.

The OmniCure®S2000 is also designed to adhere to regulatory validations and is RoHS compliant.

Fast Shutter Activation

The OmniCure® S2000 is equipped with a fast shutter activation time, providing a maximum trigger shutter
activation latency of only 50ms in PLC mode.

Closed-Loop Feedback

Over time, lamp intensity diminishes effective curing. The OmniCure® S2000 internal intensity sensor monitors
light output in real time and opens the iris to automatically correct light output within +/-5%, ensuring repeatable and
measurable doses of energy every time.

Downloadable StepCure®

StepCure® software can download a customized multiphase cure profile directly to the system. This option offers
users greater cure control.

200 Watt Intelli-Lamp®

The powerful 200 Watt Intelli-Lamp® provides even faster curing with high UVA irradiance of up to 30W/cm2.
With automatic lamp hour tracking and broad spectral output, the OmniCure® S2000 suitable for a wide range of
adhesive/substrate bonding applications.

Technical features

High Pressure 200 Watt Mercury Vapor Short Arc Intelli-Lamp® Technology to cool lamp and monitor lamp hours External PC Controlled Weight : 9.9lbs (4.5kg)

Download the complete technical features
