Insulating box : Isocube SAMES KREMLIN

Insulating box : Isocube

Spray guns

Vote

SW5zdWxhdGluZyBjYWJpbmV0IGZvciBlbGVjdHJvc3RhdGljIGFwcGxpY2F0aW9uIG9mIHdhdGVyYm9ybmUgYW5kIG5vbiBmbGFtbWFibGUgcHJvZHVjdHMgd2l0aCBOYW5vZ3VuIEFpcnNwcmF5IG9yIE5hbm9ndW4gQWlybWl4JnJlZzsgLSBtYW51YWwgYXBwbGljYXRpb25zIC0gdXAgdG8gMzAgbGl0ZXJzIHBhaW50IGNvbnRhaW5lcnMuIFdoZW4uLi4=

Contact the supplier Receive Documentation Ask for a quote

OTHER PRODUCTS FROM SAMES KREMLIN

Check out all the products from SAMES KREMLIN

USERS WHO SAW THIS ALSO VIEWED

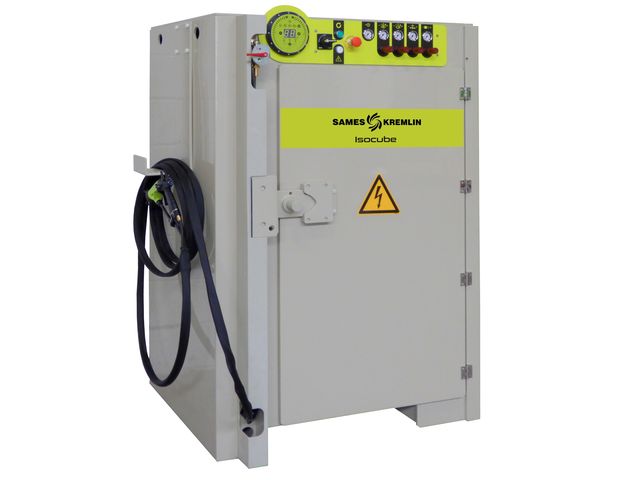

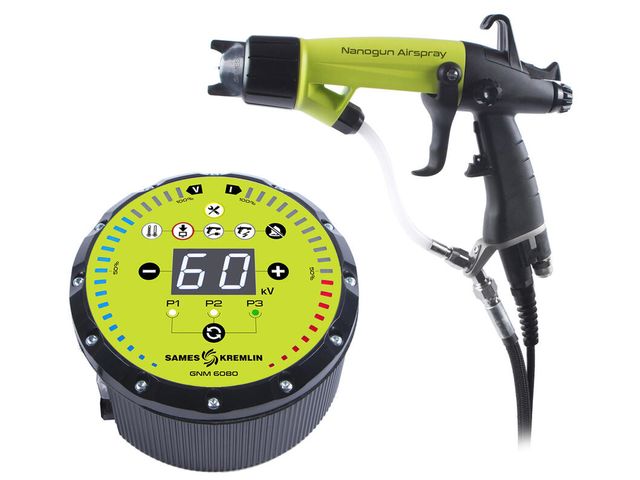

Insulating cabinet for electrostatic application of waterborne and non flammable products with Nanogun Airspray or Nanogun Airmix® - manual applications - up to 30 liters paint containers.

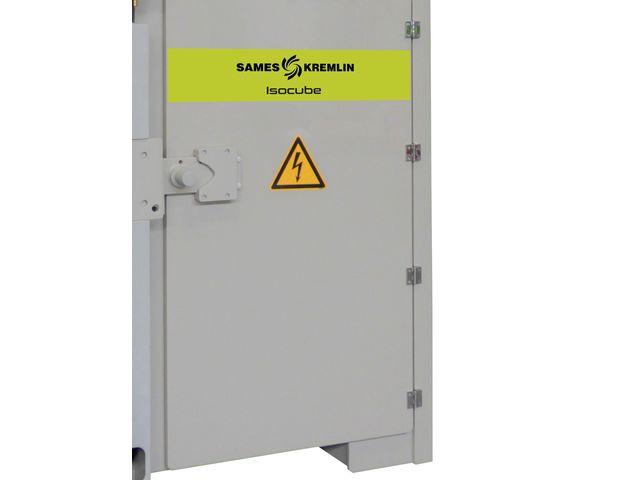

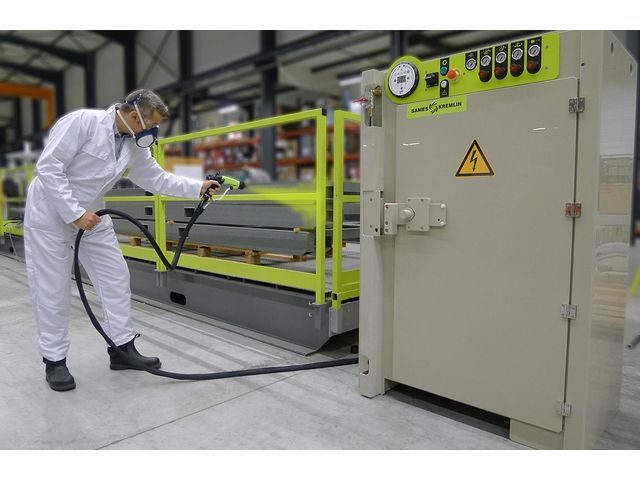

When spraying waterborne or non flammable coatings, spray equipment must be isolated in a closed cabinet. The Isocube by SAMES KREMLIN fully complies to this requirement. This compact insulating cabinet can be installed close to the paint location. A large door provides easy access to load the paint tank. A built-in safety system ensures the grounding of the paint circuit when the gun is not spraying or when the door is opened.

  • 100% safe operation for manual electrostatic waterborne and non-flammable product applications
  • Plug and Spray: Easy to install, to move around, to maintain
  • User friendly for outstanding finish quality

PERFORMANCE
  •     Electrical safety of operators: automatic discharge to earth in case of a power shutdown or when the operator opens the door (<0.8s)
  •     Perfect quality of electrostatic insulation thanks to welded body for efficient wrap-around effect
  •     Immediate productivity internal charge (60 kV): generator built in the gun
  •     Discharge resistor

PRODUCTIVITY
  •     Plug and spray: set-up and running within 10 minutes
  •     Easy integration thanks to clean side and back faces
  •     Easy access to the pump and paint container

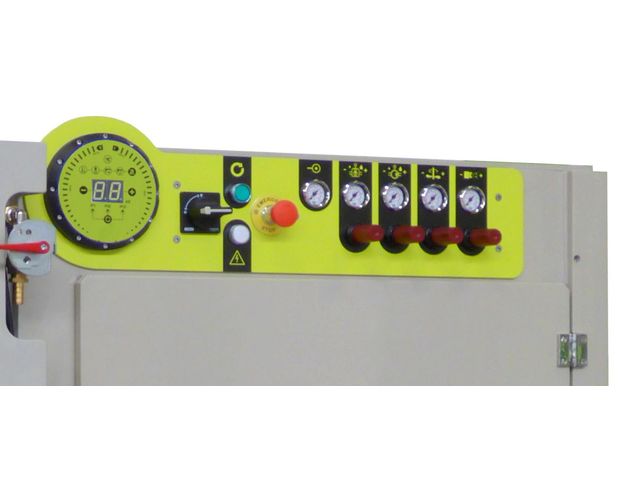

  •     All unit control remote to front side
  •     Retains product leaks and rinsing fluids

SUSTAINABILITY
  •     Robust design for durability
  •     Easy to clean working cell. Polypropylene body
  •     Easy hose assembly and connection to smart manifold panel
  •     Removable tray for easily cleaning the paint containers

Maximum Fluid Pressure : 7 - 200 (102 - 2900) bar (psi) Maximum Air Pressure : 7 (102) bar (psi) Transfer Efficiency : 85 - 93 % Maximum Fluid Temperature : 40 (104) °C (°F) Recommended Material Viscosity Range : 20-150 s CA4 High Voltage (maximum) : 60 kV Current : 80 µA Paint Tank Capacity 30 (8) l (gal) Fluid pressure (Nanogun H20 Airspray) : 7 (102) bar (psi) Fluid pressure (Nanogun H20 Airmix®) : 120 - 200 (1740 - 2900) bar (psi)
Download the complete technical features
