Internal 3D inspection: BoreINSPECTION

3D measurement

Vote

“ Characteristics to be checked: - Roundness - Concentricity - Cylindricity - Conicity - Tapping - Thread depht - Thread triangle - Damaged thread - Threadded hole ”

Ask for a quote

Presentation

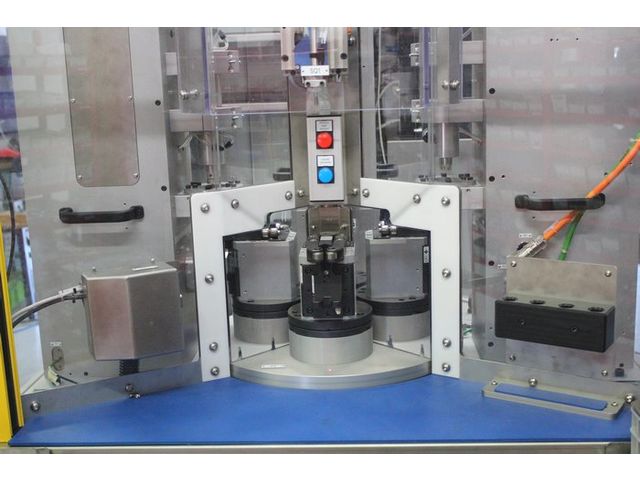

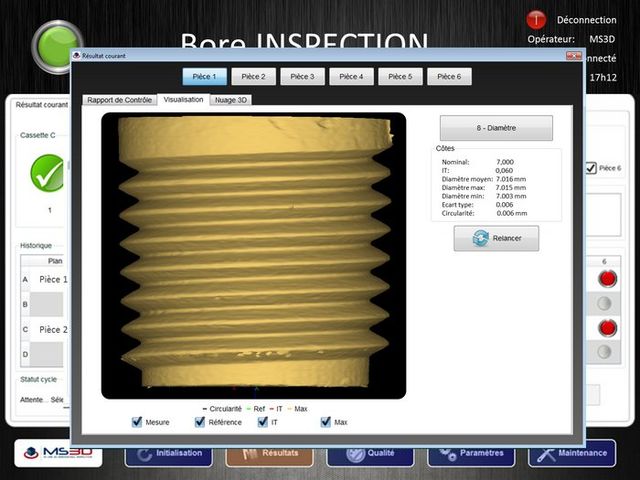

BoreINSPECTION is the line of non-contact 3D inspection machines designed to measure internal geometries. These machines are used to perform inspections directly on or alongside the production line for all types of internal blind and/or through hole shapes that have been tapped, bored, drilled etc., with a measurement uncertainty of 1 µm (1σ).

Dimensions and Shapes:
Diameter – Cylindricity – Coaxiality – Circularity – Concentricity – Tapering – Depth – Default location – Shoulders – Scratches – Missing material – Presence of chips and shavings – Thread root – Thread crest – Measurement over pins – Flattened threads – Double threading

Typical parts inspected:
M4 to M300 threads, cylinder blocks, internal splines, tubes and pipes, injector bodies, etc.

Technical features

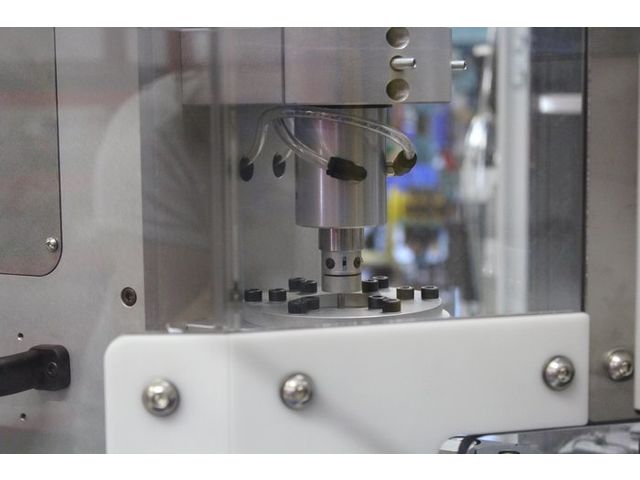

Non-contact sensors : Confocal chromatic coding Rotation table Parts loading : Manual or with robot / convoyer / palette Autonomous work position Dimensions ( mm): 1000 x 1000 x 2000 Weight : 900 Kg GUI : Standard and configurable Unlimited measurable references

Download the complete technical features
