Kapton® insulated thermocouple wires- TKK-TKK-O THERMIBEL S.A.

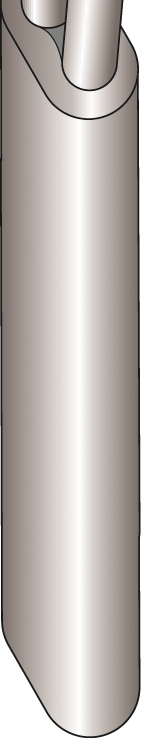

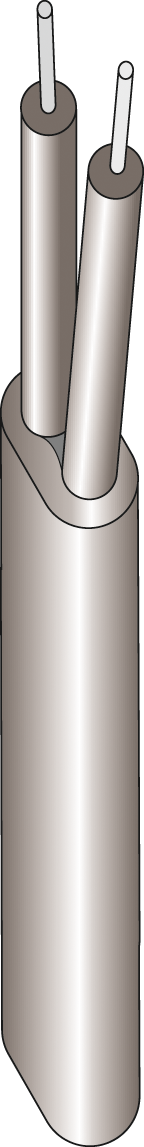

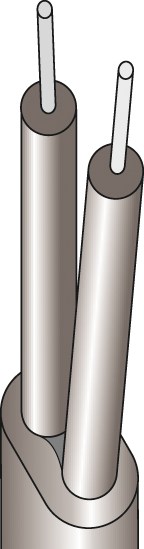

Kapton® insulated thermocouple wires- TKK-TKK-O

Wire, Cables, Cords

Vote

Ask for a quote Receive Documentation Contact the supplier

Very useful for measuring the temperature when the measuring device is located at a distance of several tens of meters from the thermocouple, the torque cable makes it possible to connect these two elements by supporting the temperature during the connection.

The Kapton TKK-TKK-O insulated torque cable with Kapton-insulated outer sheath and side-by-side insulating conductors operates in a temperature range of -200 to 400 ° C.

This cable is used in laboratories, industries, for freezing and combustion tests. It is available in 3 models, with conductor cross sections of 2 x 0.20, 2 x 0.32 and 2 x 0.50 mm².

Insulation : Kapton insulated conductors with Kapton external sheath Conductors : Solid Core lay-up : Flat twin - End form flat/oval Tolerance class 1 (Class 2 available on special request) Wire composition according to IEC 584-2
