Shielded silicone rubber insulated cables- SIL-SCH-SIL-R THERMIBEL S.A.

Shielded silicone rubber insulated cables- SIL-SCH-SIL-R

Wire, Cables, Cords

Vote

“ Twisted silicone insulated conductors with aluminised polyester tape and drain wire, external silicone sheath. ”
Ask for a quote Receive Documentation Contact the supplier

Used primarily for the transmission of thermoelectric voltage in order to obtain a reliable temperature measurement, SIL-SCH-SIL-R faradised cable is provided with silicone rubber insulation.

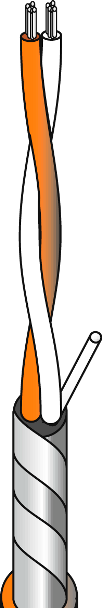

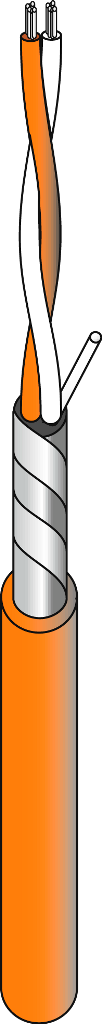

The conductors are insulated with twisted silicone rubber and the faradisation of the cable is made by aluminized polyester strapping.

Operating at a temperature between -40 and + 200 ° C, this cable is available in several models with external dimensions between 4.8 and 8.0 mm, different conductor cross sections and a nominal weight between 30 and 86.4 kg.

Réf: SIL-SCH-SIL-R Temperature : -40 to +200 °C Insulation >20 MOhm/km(Voltage 1000 V DC at 20 °C) Colour code used by default is IEC 584-3

Measures laboratories
