Load green vehicle- Automatic cable reels to install after the WALL BOX CABLE EQUIPEMENTS

Load green vehicle- Automatic cable reels to install after the WALL BOX

Electric roller

Vote

“ Easy, safe and clean solution to load your vehicle ”
Ask for a quote Receive Documentation Contact the supplier

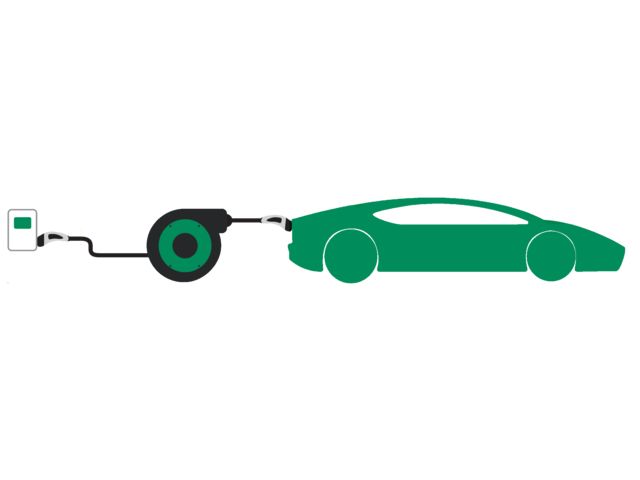

Automatic cable reels to install after the WALL BOX:

Easy, safe and clean solution to load your vehicle

Easier and more convenient
Why unroll and wind by hand, each time, the cable of his electric car?
With these spring-loaded cable reels, the cable automatically rolls and unrolls.

Cleaner and safer
The cable no longer drags on the ground:
It does not dirty, does not become worn and do not deteriorate.
It is not likely to cause falls.

2 types of connectors

Type 1 - SAE J1772-2009

The connector type 1 is equipped with 5 contacts:

- 3 of power: L1, N and PE
- 2 of communication: PP (closeness) and CP (pilot control).

It corresponds to the North American and Japanese standards.
It is very common on vehicles, but is not usually installed on charging stations.
This connector can only be used for single-phase recharge.
Max 32A 230V.

Type 2 - VDE-AR-E 2623-2-2

The connector type 2 is equipped with 7 contacts:

- 5 of power: L1, L2, L3, N and PE
- 2 of communication: PP (closeness) and CP (pilot control).

It corresponds to the European standard for AC charging stations. It is the most commonly used connector within the European manufacturers of electric cars.
This connector can be used for single-phase and three-phase recharges.
Max 32A 230V / 32A 400V.

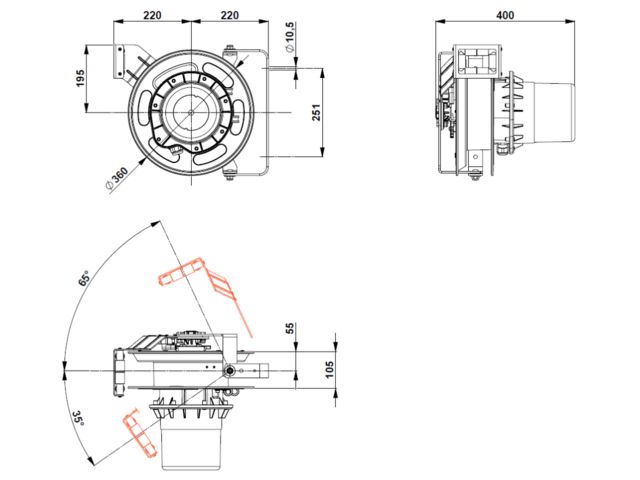

VPLT 600 range

- White plastic carter shockproof, green cover
- Swivelling bracket
- Level of protection IP42
- Horizontal and vertical use
- Detent ratchet every 50 cm, easily removable if you want the cable to be in permanent traction
- Double grounding contact
- Collector isolation voltage 2.5 kV
- Roller cable guide
- Brass ring collector and brushes
- Use temperature - 5°C/+50°C
- Height 280 mm, width (bracket included) 305 mm , depth 145 mm
- For vertical use, free option mandatory (code ERXP6A7V)

VSTEEL 500 range

- Painted steel and polymer housing
- Level of protection IP65
- Optional fixing brackets
- Horizontal and vertical travel (depending on options)
- High quality steel spring loaded (long-lasting in time)
- Supplied without fixation bracket, cable guide or ratchet (see options) the options are delivered disassembled
- Use temperature - 5 °C/+50°C
- Maximum winding speed: 30 m/minute
- Collector isolation voltage 2.5 kV

Total length 4 m or 8 m IP42 / IP65 Single-phase 16A / Single-phase 32A
Download the complete technical features

Industry Automobile industry

Drop your rating on Load green vehicle- Automatic cable reels to install after the WALL BOX

Your answer to the rating from -

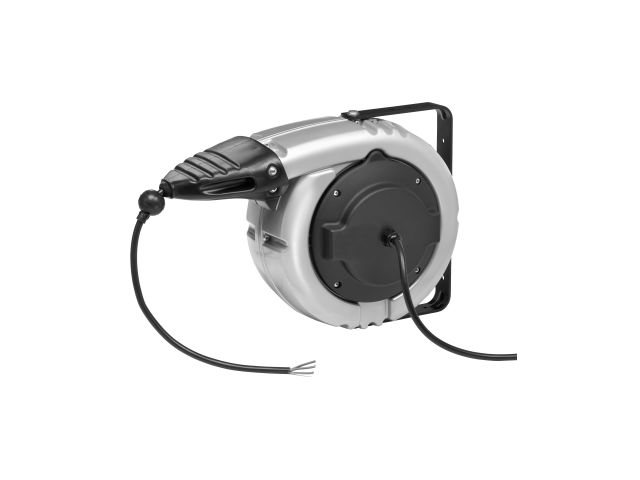

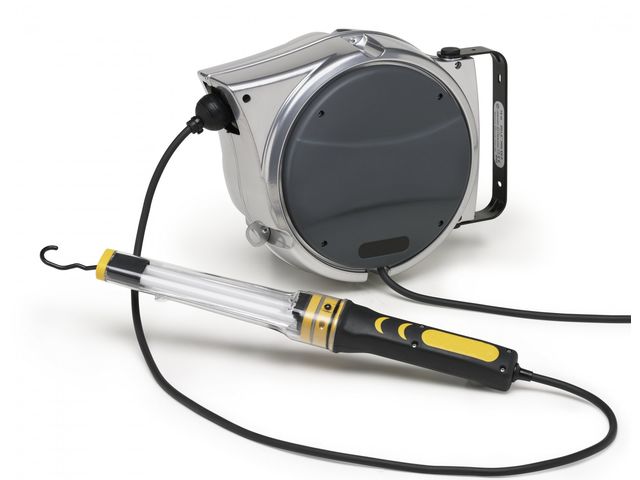

OTHER PRODUCTS ELECTRIC ROLLER FROM CABLE EQUIPEMENTS
