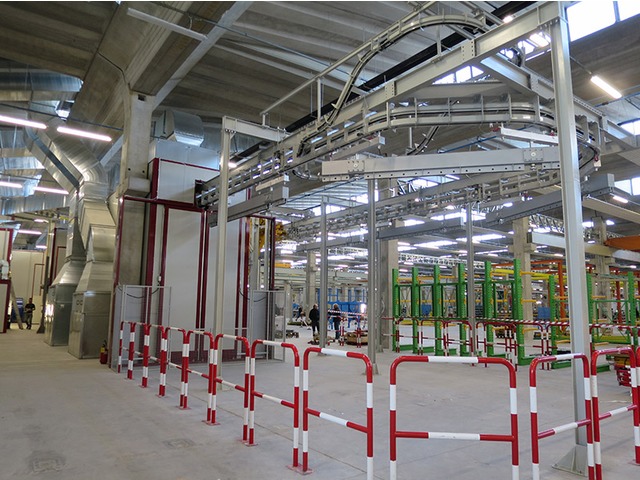

Manual liquid spray painting line with step feed

Paint booth

Ask for a quote

Manual spray painting line with power handling of processed parts. Suitable for painting from medium to big size parts.

Optional accessories

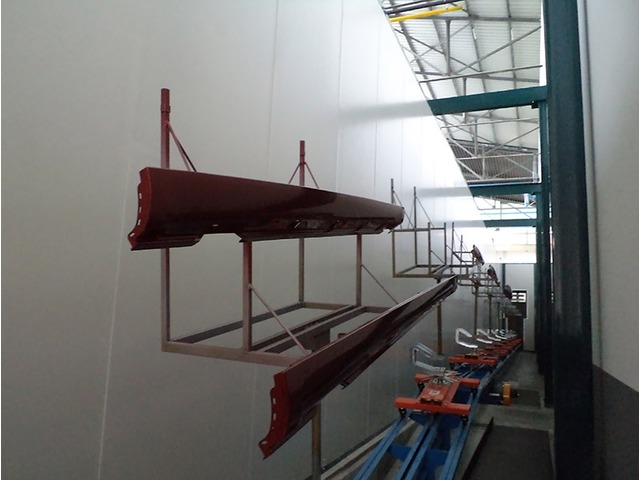

Different loads and pace of overhead conveyor.
Additional phases in the washing tunnel.
Painting booth with water veil filtration.
Additional painting booths.
Electric and mechanical assembly.
Diesel oil burner.

Notes

Standard step spray line includes :

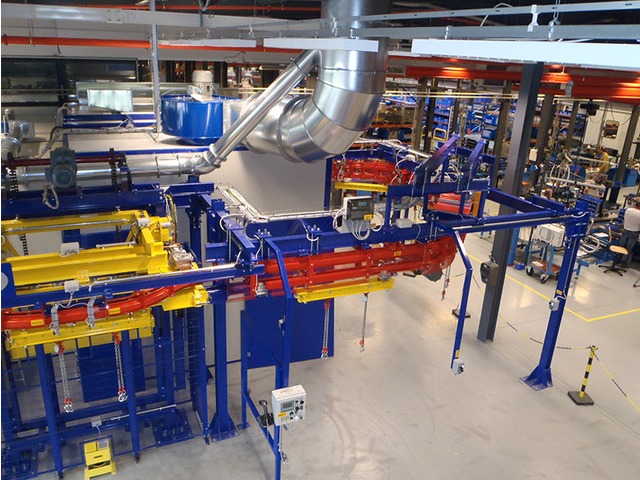

- Power conveyor with automatic feed.
- Automatic multiphase washing tunnel.
- Drying oven.
- 1st painting booth with dry filtration.
- 1st flash off tunnel.
- 2nd painting booth with dry filtration.
- 2nd flash off tunnel.
- Curing tunnel.

Construction : overhead conveyor, drying tunnel, curing oven and painting booths, made of galvanized steel sheet; washing tunnel made of stainless steel; frame made of painted steel.

Oven insulation made of mineral wool, thickness 80mm, density 100 kg/m3, max. temperature 100°C.

Methane or LPG burners.

Supplied as assembly kit.

Technical data and dimensions are given as indication and can be changed according to specific customer’s requirements.
