Presentation

M3-M

M3-M : portable model with handle
- Very portable thanks to its handle (height=11cm) and its light weight (1.25kg), this measuring device will allow you to measure your cables, ropes, pipes…
- Up to Ø22mm
- Counter in dm measures up to 9999.9 meters
- Measuring wheel width 25 mm
- Development 200 mm
- Striated metal
- Manual use
- Dimensions and weight (M3-M): W130 x D 250 x H 200 mm(including handle 11 cm) - 1.25 kg

As a matter of principle, the measuring of a long product canot be made with a perfect accuracy. It is the user’s responsibility to perform their own tests to identify the percentage of accuracy for the different products to be measured.

Code E3350010

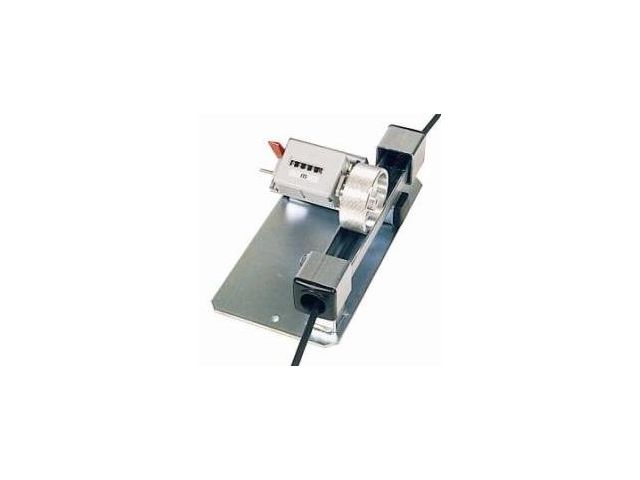

M3

Diameter : 1 to 22 mm
- Counter in dm measuring up to 9999.9 meters.
- Measuring wheel width: 25 mm development: 200 mm made of striated metal.
- Dimensions and weight (M3-T):
- L 130 x W 250 x H 140 mm - 1,9 kg

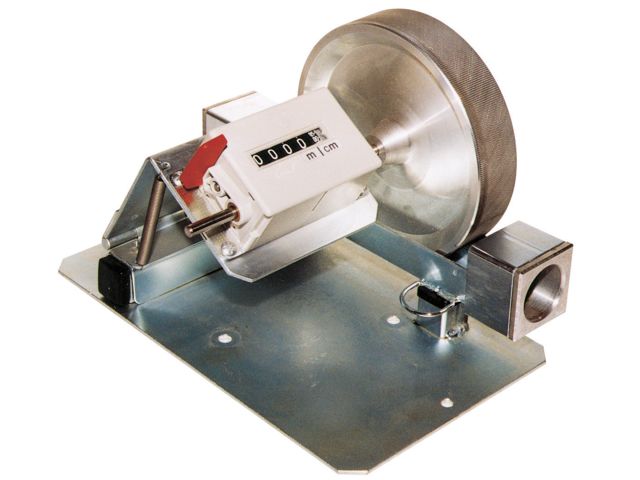

M35

Diameter : 1 to 35 mm
- Counter in cm measures up to 9,999.95 meters
- Measuring wheel: width: 35 mm, development: 500 mm, made of ribbed metal or synthetic ribbed metal (for metal cables)
- Resistant aluminium ends
- Very stable base (17 kg), which can be adjusted at 3 heights (650, 740 or 820 mm)
- Dimensions and weight (M35-T) : l 160 x W 300 x H 160 mm - 4,1 kg

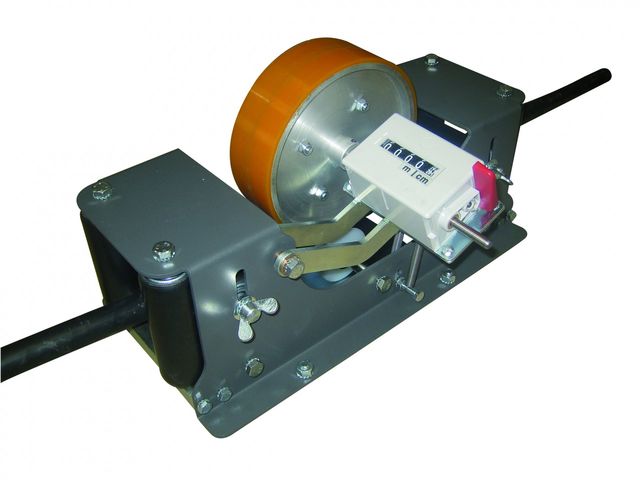

M50

Diameter : 1 to 50 mm
- Counter in cm measuring up to 9999.95 metres
- Measuring wheel width: 50 mm development: 500 mm, made of striated synthetic material or polyurethane (intensive use).
- Guided at the entry and exit by 4 steel rollers and under the measuring wheel by a roller with flanges.
- Desk-top model and floor models (identical to that of the M35)
- For manual use or on a coiling machine.
- Dimensions and weight (M50-T)
- l 195 x P 380 x H 175 mm - 8,7 kg
