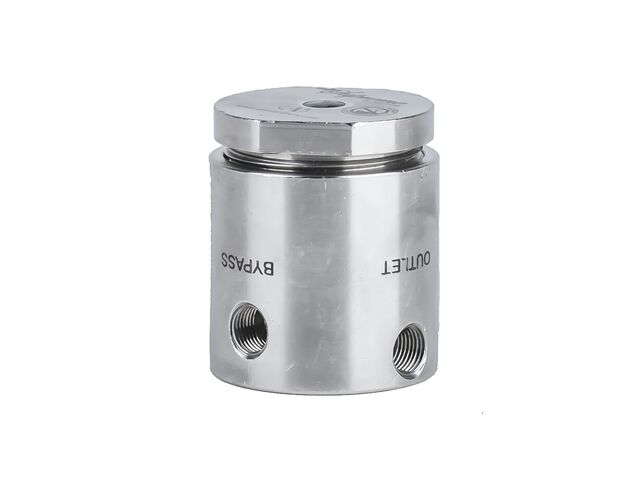

Membrane separator for gas sample | GENIE 120

Gas analysis

“ • Helps preserve sample integrity • Superior analyzer protection • Quick and easy to install and maintain • Quick and easy membrane inspection • Economical ”
Ask for a quote Receive Documentation Contact the supplier

The Supreme 100 Series™ remove 100% of entrained liquid and particulate in gas samples, which allow only gas sample to flow to analyzers.  This action protects analyzers and other sampling components against liquid damage.

The Genie® Supreme Series™ 100 models can accommodate a wide range of applications just as the original Genie® Series 100 Membrane Separators™, yet they offer an improved housing design for easy maintenance and the innovative Liquid Block Technology™ that prevents liquid from being forced across the membrane should sample line pressure conditions become upset.  Genie® Supreme Series Membrane Separators™ are safe and easy to install and maintain, especially in heated, densely populated cabinets.

The Model 120 is ideal for low flow applications and can withstand high pressure in the housing.  This high pressure model has a 1” cross sectional membrane area, the same as the original Genie® Model 101, and it is ideal for the removal of relatively small amounts of liquid present on a continuous basis; it is also perfect for protecting gas chromatographs, mass spectrometers, O2 analyzers, moisture analyzers, and other analyzers with relatively small flow requirements. Please note that special fittings may be ordered, such as a Universal Assembly™.

Genie® Membrane Technology™ Liquid Block™ in option Low internal volume Straight throught bypass Built-in membrane retention Threaded housing cover All connection ports on the housing Back mounting
Download the complete technical features

Industries Natural gas Petrochemical Refinery Spot, composite, or continuous gas sampling in any process industry
