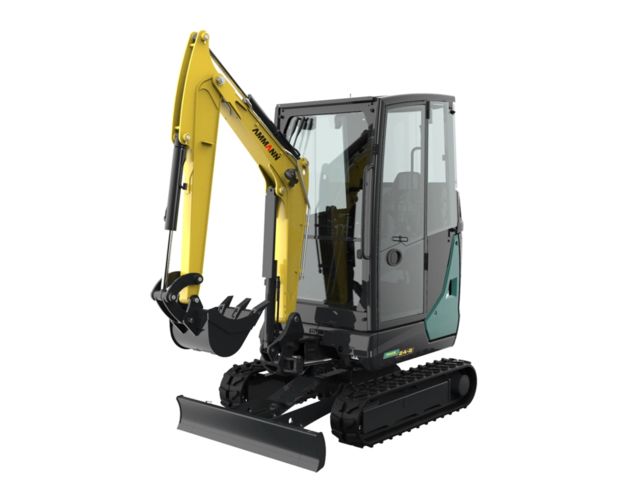

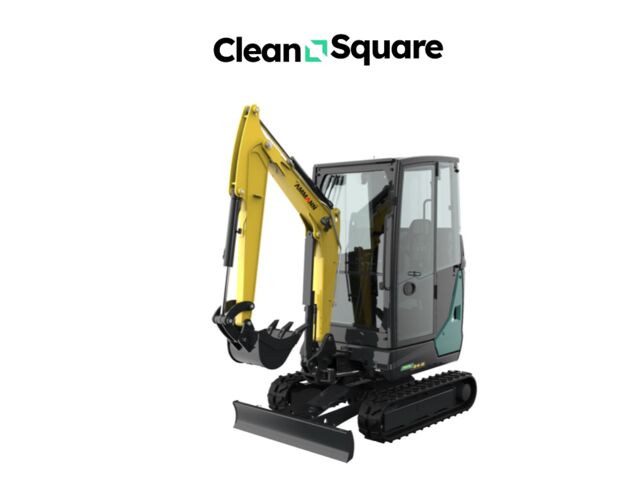

Mini Excavators with Cabin AMX 24-2 with CABIN & AR CR 30/ 3G Ammann ENNEA TRADE

Mini Excavators with Cabin AMX 24-2 with CABIN & AR CR 30/ 3G Ammann

Hydraulic excavators

Vote

Ask for a quote Receive Documentation Contact the supplier


Mini Excavators with Cabin AMX 24-2 with CABIN & AR CR 30/ 3G Ammann: 35247,5 €

!!! AMX 24-2 mini excavators with cabin (bare): €33,177.5!!!

FEATURES OF AMX 24-2 MINI EXCAVATORS

  • Operational weight with cab and rubber tracks: 2190 kg
  • Speeds (slow range/ fast range): 0 to 2.6 km/h/ 0 to 4.0 km/h
  • Turret rotation speed: 10.5 t/min
  • Equipment Type: Monobloc + Boom Foot Orientation
  • Replaceable Pins and Bushings/Boom Foot and Cast Steel Bucket Links: Yes/ Yes
  • Tilting Operator Platform: Yes


Dimensions:

  • Maximum width 990–1300 mm
  • Total height 2395 mm
  • Rotation radius 1000 mm
  • Standard pendulum length (optional long pendulum) 1250 (1450) mm
  • Track width 230 mm
  • Track train: number of rollers (on each side) 3


Engine:

  • Manufacturer / Type Kubota D1105
  • Diesel Fuel / Gasoil
  • Stage V programme
  • Maximum power (2300 t/min) 15.4 kW | 20.9 hp
  • Displacement 1105 cm³
  • Number of cylinders 3
  • Turbo No
  • Liquid Cooling
  • Consumption 3 l/h
  • Alternator 12 V (40 A)
  • 12 V (65 A) battery


Hydraulic system:

  • Hydraulic system technology Automatic load adjustment and flow division
  • Main hydraulic pump type Variable displacement
  • Displacement pumps 25 + 4.95 cm³
  • Flow rate pumps 52 + 10.3 l/min
  • Maximum hydraulic pressure 220 bar
  • Maximum auxiliary line(s) flow AUX 1 or PTO 1 (AUX 2 and AUX 3 if machine equipped) 50 l/min
  • Maximum line pressure(s) auxiliary AUX 1 or PTO 1 (AUX 2 and AUX 3 if machine equipped) 200 bar
Performance

  • Maximum discharge height with standard cab and balance (optional long balance) 2560 (2760) mm
  • Tooth force (standard balance) ISO 6015 1600 daN
  • Balance force (standard balance) ISO 6015 1000 daN
  • Traction force 1900 daN
  • Ground pressure with cabin 0.35 kg/cm²


Capacities / Capacities:
  • Fuel tank 20 l
  • Hydraulic oil tank 16 l
  • Hydraulic circuit capacity 2

Operational weight with cab and rubber tracks: 2190 kg Equipment Type: Monobloc + Boom Foot Orientation Maximum width 990–1300 mm Total height 2395 mm Rotation radius 1000 mm
