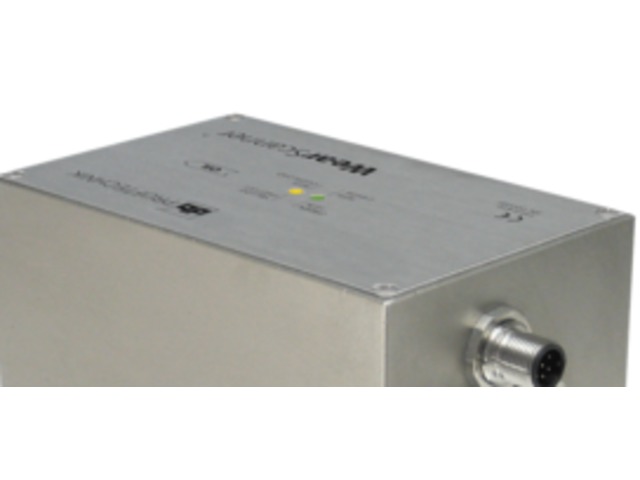

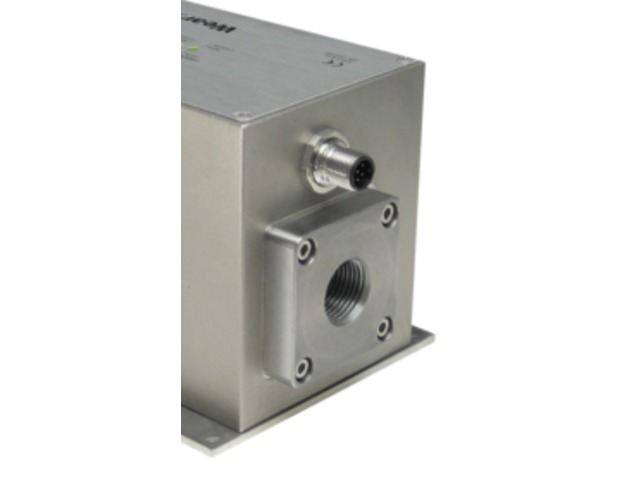

Online particle counter monitors wear debris in oil : WEARSCANNER PRUFTECHNIK

Online particle counter monitors wear debris in oil : WEARSCANNER

Other sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

WEARSCANNER detects electrically conductive particles in oil using a patented method based on the eddy current principle. Results are independent of oil temperature, flow rate, viscosity, air and water contents or oil color (darkening).

 The particles are counted real-time and classified according to their size. Minimum particle detection size is down to 50µm to ensure the detection of the slightest start of detrimental and abnormal wear.

WEARSCANNER identifies ferrite as well as non-ferrite particles. It is ideal for detecting progressive damage to gear teeth or roller bearings at an early stage.

The free of charge WEARSCANNER utility software allows easy configuration of the WEARSCANNER particle counter.

With more than 30 years of experience in the field of eddy current technology and condition monitoring PRÜFTECHNIK joined forces and developed the WEARSCANNER to provide customers another powerful solution to enhance machine availability.

Detects bearing and gear teeth wear Avoids consequential damage Internal storage capacity for 150 days of measurement data Compact stainless steel housing Modbus TCP interface for easy integration to PLC Recognizes ferrite and non-ferrite material Switching alarm output.
