PFAFF - 8312 DOREY

PFAFF - 8312

Plastic welding by ultrasonics

Vote

Ask for a quote Receive Documentation Contact the supplier

Ultrasonic welding machines of the Seamsonic series combine all the physical advantages of ultrasonic welding with the whole range of technological sewing experience. On the PFAFF 8301/8310/8312 Seamsonic the workpiece is held between the sonotrode and the anvil wheel and welded continuously under pressure. When welding continuously by the ultrasonic method, the material to be welded will be subjected to rapid changing pressure vibrations. The heat develops because of molecular vibrations beneath the material surface, for thin materials within the immediate vicinity of the actual weld.

Ultrasonic welding with the Seamsonic is a modern, innovative and economic alternative and complementary to conventional sewing technology. If assembling of laminates, clothing fabrics with high share of polymer and technical nonwovens is required and in particular to get, the use of the Seamsonic is the first choice.   VERSION PFAFF 8312 CS / CUT&SEAL

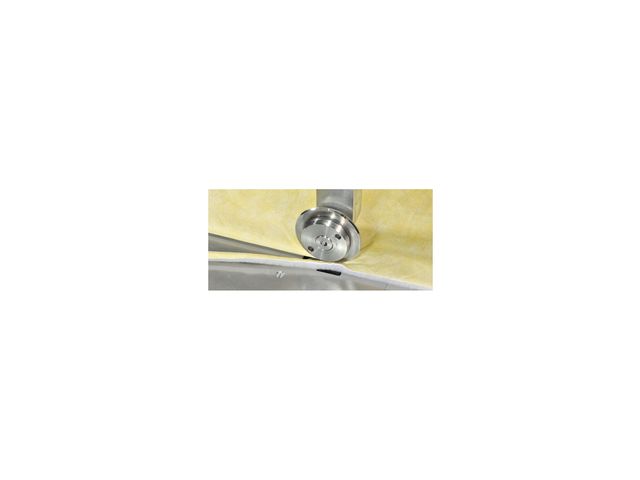

The proved single-wheel solution was optimized by the use of steel-sonotrode. This will reduce wear and associated costs greatly. For our customers the fine C&S-seam with its high strength is the main argument to buy this class of machines.


VERSION PFAFF 8312 CS / CUT&SEAL DUAL

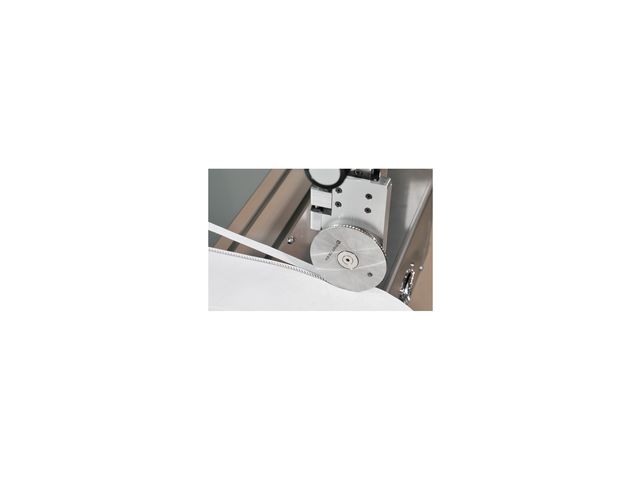

This solution features two anvil wheels (one for cutting and sealing and the other one to realize the second weld seam) on one post, but on separate shafts. With this patented solution the load may be individually adjusted – the two wheels are still running in sync. This is an absolute unique selling point (USP) for this technology. The machine may be adjusted better and more specifically to the material at hand and increases the process reliability when welding and cutting to weld seams. The minimum distance between weld seam an cutting is around 1 mm.


FEATURES
  • Long arm version 1000 mm
  • All parameters controlled electronically (power, amplitude, speed and pressure)
  • Seam distances resp. operating cycles can be programmed (sequence welding)
  • Reproducibility of the welding process
  • The energy adjusts to the speed (via a pedal) = Dynamic welding
  • Equipped with differential feed; separate drive for sonotrode and anvil wheel; that means smooth, non-distorted seams or the possibility of adding a some fullness
  • Process reliability through monitoring of welding parameters with integrated device for constant performance (so that reliable processing is possible even when sewing over cross seams)
  • Possibility of spot welding (tacking)
  • No start/stop – marks
  • Touch screen (simple handling with pictograms)
  • Titanium sonotrode, up to 10 mm
  • Hardened steel sonotrode, 7 mm
  • Hardened steel sonotrode, 10 mm
  • Welding method: 35 kHz, 400 W Ultrasonic generator
APPLICATIONS

Protective car covers, sound & insulation products, sun protection, hot air balloon, zeppelin, parachutes ...



SPECIFICATIONS

Sealing speed: 0.5 to 10 m/min. option to 20m/min.
Seam width: 1,0 to 10,0 mm
Ultrasonic frequency: 35 KHZ
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
