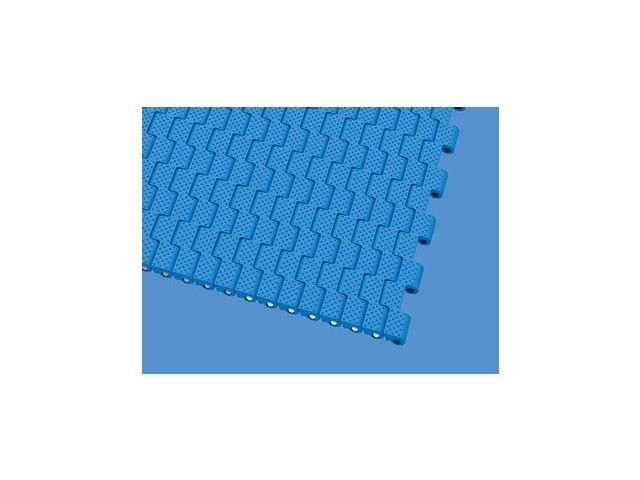

S13-0 FLT, geschlossene, glatte Oberfläche

S13-0 NPY, geschlossene Oberfläche, negative Pyramide. Geschlossene Oberfläche, Struktur „negative Pyramide“ für herausragende Ablöseeigenschaften beim Transport von nassen oder klebrigen Produkten

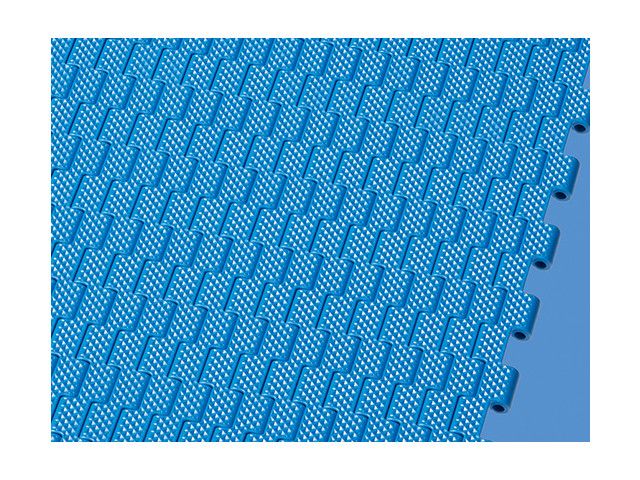

S13-0 CTP, geschlossene Oberfläche, Struktur mit Spitznoppen. Geschlossene Oberfläche, Struktur mit Spitznoppen für eine hervorragende Mitnahme.

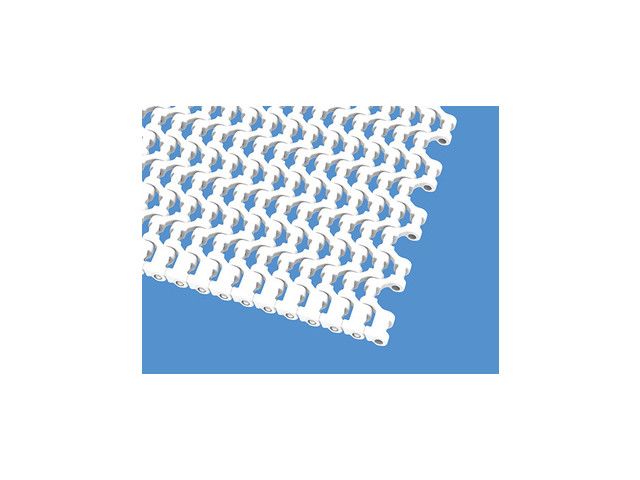

S13-34 FLT, Durchlässige (34 %), glatte Oberfläche. Durchlässige (34 %), glatte Oberfläche für hervorragende Luftzirkulation und Drainage, Kontaktfläche von 47 % (größte Öffnung: 11,4 x 4,6 mm/0,45 x 0,18 in), leicht zu reinigen.

Plastic modular belts, Modular conveying belts, Series 13

Modular conveyor belts

Ask for a quote

Straight running belts, Pitch 8 mm (0.31 in) Belts for light to medium-duty food and non-food Design characteristics Micro pitch belt with small transfer gaps Designed to run over nosebars/knife edges or rollers with a radius down to 3 mm (0.12 in) allowing, precise transfer of even the smallest products Versatile for conveying, drying and cooling applications Optimal design of sprocket teeth, and belt underside provides superior sprocket engagement, safe belt tracking and favorable cleanability Belt and sprocket design ensures superior load transmission and belt pull capacity Headless pin making it very easy to install and remove the belt for maintenance Components: Sprockets In different sizes with round or square sprocket Detail hinge pin Headless pin with unique shoulder design ensures trouble free instal- lation, maintenance and a secure pin retention Detail nose bar Narrow transfer gap ensures smooth transfer of small and delicate products
