COMPACT AND USER-FRIENDLY SYSTEMS
The toolsmart.line equipment is not only space-saving. It also enables the control of several different processes via a single control unit. As a result, one single cooling system can supply several different manufacturing areas, for example. Cost-saving is only one factor. It is also a sustainable and environmentally friendly solution.
COMBINATION UNITS – MODULAR SOLUTIONS

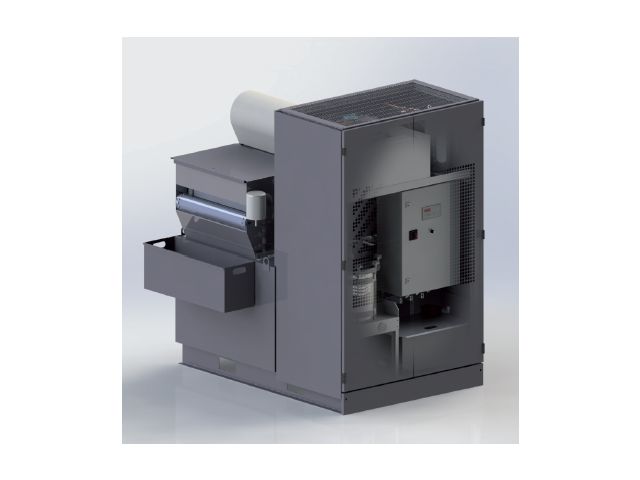

toolsmart – compact solution for the preparation of cooling lubricants and washing water solutions. It can be used as a centralised or decentralised unit for various processing methods. Its modular concept enables the adaptation of the system to processspecific applications or processes.

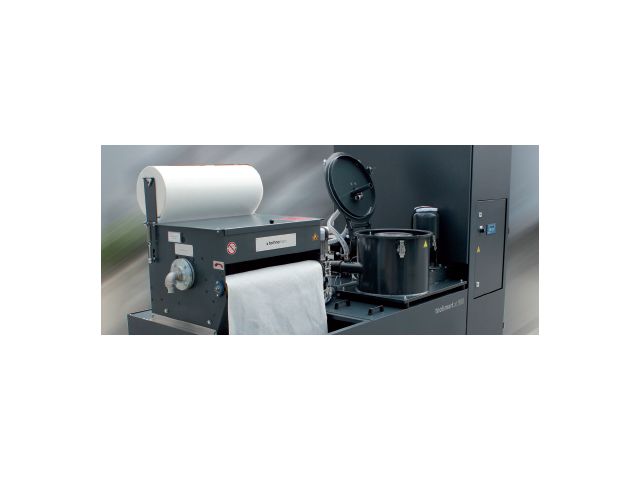

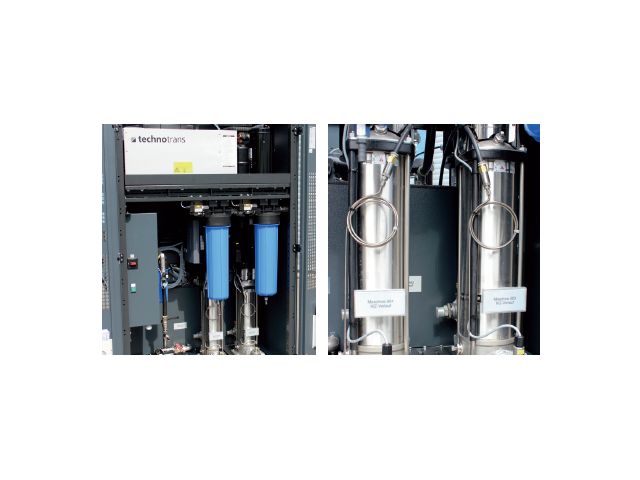

Main components of the toolsmart are the various combinable filtration modules for full flow, partial flow, or bypass. The system can be supplemented by modules for such functions as e. g. cooling, heating, metering, or skimming.
A unique concept: Modular solutions of the toolsmart combine cooling of spindle, control cabinet, and cooling lubricants in a central system – it is compact and requires little space.
technotrans works on the realisation and continuous improvement of matching peripheral systems that work together and supplement one another smoothly and optimise the production in various industry sectors.
technotrans customers use 21 service and sales companies of the corporation worldwide, which offer a total of 810 employees, to ensure the satisfaction of their own international clients.
COOLING LUBRICANT PREPARATION AND COOLING COMPACTLY COMBINED

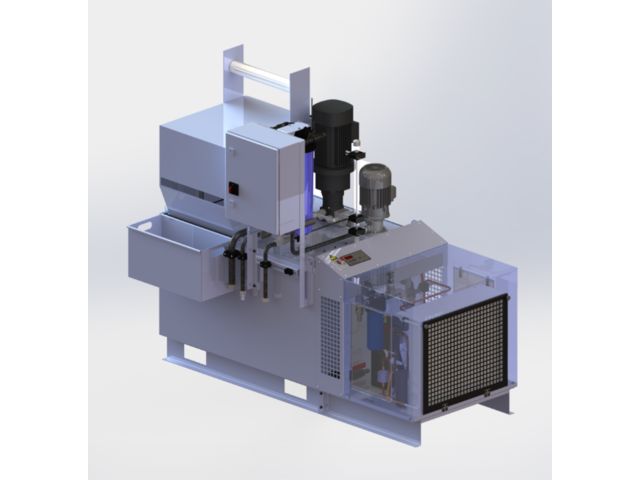

The toolsmart series is a well-established solution for the filtration and temperature control of machine tools, and the omega.line series is used in laser cooling and other applications. The new combination unit based on these two product series has been specifically developed for additive manufacturing by technotrans. Like the entire toolsmart series, the system for industrial 3D printing has a modular and particularly compact design.
Thanks to the proven multi-zone cooling concept, the system can also be used as a chiller for other machine tool segments. The spindle, hydraulic system, switch cabinet, cooling lubricant and other areas are all controlled – based on a single control element – via several independent refrigeration circuits.
The available models include a basic system up to the flexible toolsmart.xt unit with a tank capacity up to 4,000 litres and a filtration rate of up to 750 l/min.
COOLING LUBRICATION PREPARATION FOR 1 OR 2 PROCESSING CENTERSCOMPACT INSTALLATION DIMENSIONSESTABLISHED FILTRATION SYSTEMS THAT CAN BE COMBINED (MULTI-LEVEL FILTRATION UP TO < 5 μM)PROCESSES E. G. STEEL, ALUMINIUM, CAST IRON, GLASS, CERAMICS, CFK UND GRAPHITETANK SIZES/PUMP EQUIPMENT, DEPENDING ON REQUIREMENTSCOOLING CAPACITY UP TO 20 KWHIGH DEGREE OF OPERATION AND SERVICE COMFORTOPTIONS SUCH AS REFILLING, SKIMMER ETC. AVAILABLE
