PSD | Portable Sensor Display

Sensor accessories

“ - Rigid Versatile Handheld Instrument - Connection to any type of Strain Gauge Transducers - Can be programmed directly on the device or by software (provided) ”

Ask for a quote

FEATURES

0.01% Accuracy
Rigid Versatile Handheld Instrument
Min.-Max. Value Display (Peak & Valley)
16 Programmable Measurement Ranges
Measuring Rate up to 1600 values per second
Connection to any type of Strain Gauge Transducers
USB 2.0 Interface
Battery-powered or USB-powered Device
Display Units
Character Height: 14mm
Can be programmed directly on the device or by software (provided).

DESCRIPTION

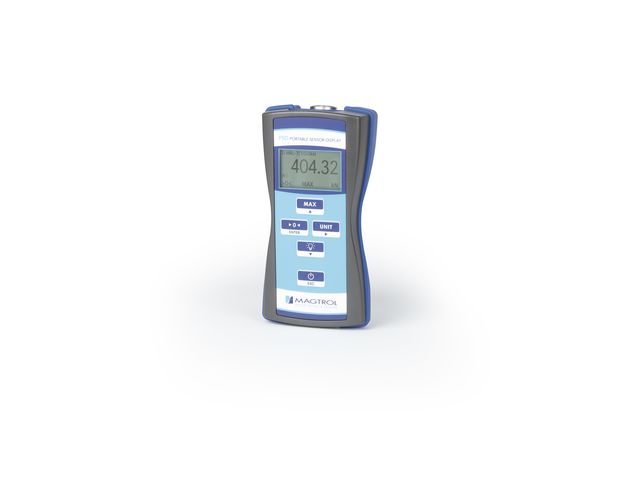

The PSD Portable Sensor Display from Magtrol is a very compact, light and easy to use device. This amplifier can process sensor strain gauge signals ±0.3…5mV/V. High measuring accuracy, paired with fast measuring rates allow an internal resolution of 22 bits at 2mV/V. It also stores the adjustment data, sensor designation and physical unit. Functions, such as TARE, recall of min.-max. value,... are available during the measurement.

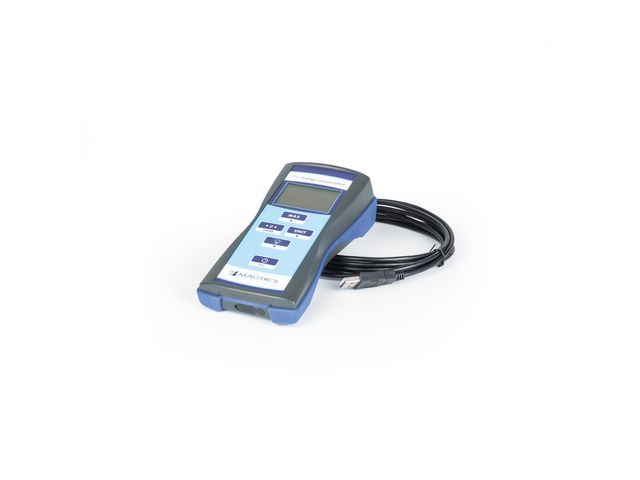

The device is powered by 3 AA batteries or via its USB Mini-B port. In order to increase its duration of use, the PSD integrates an automatic standby mode which is activated when the device is not used.

APPLICATIONS

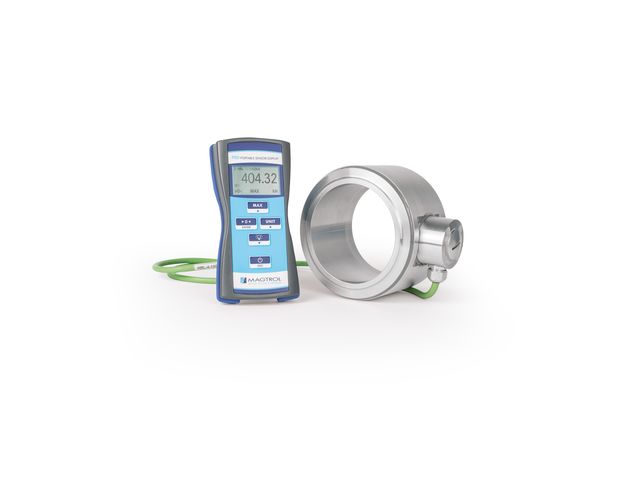

The PSD Display can be used with many sensors such as force sensors, load cells, torque sensors, anchor sensors or any other type of strain gauge transducers.

This portable measurement and display system is particularly suitable in cases where a fixed installation is difficult or irrelevant, such as:

Maintenance of installation
Intermittent monitoring
Laboratory, Research and development,...
Installation or monitoring in civil engineering,...

Technical features

0.01% Accuracy Min.-Max. Value Display (Peak & Valley) 16 Programmable Measurement Ranges Measuring Rate up to 1600 values per second USB 2.0 Interface Battery-powered or USB-powered Device Connection to any type of Strain Gauge Transducers Display Units Character Height: 14mm Can be programmed directly on the device or by software (provided)
