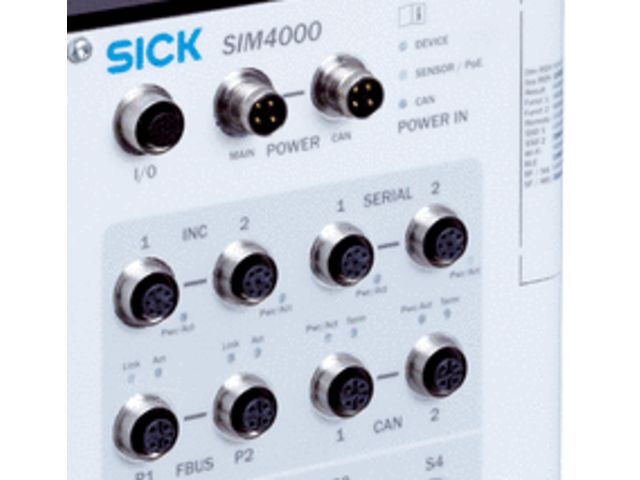

Sensor Integration Machine SIM4x00 : SIM4000-0P03G10

Sensor accessories

Vote

Ask for a quote

Presentation

The programmable SIM4000 Sensor Integration Machine – part of the SICK AppSpace eco-system – is opening up new possibilities for application solutions. Data from SICK sensors and cameras can be merged into a point cloud, evaluated, archived, and transmitted, e.g. to cloud platforms. 8-gigabit Ethernet interfaces are available for 2D or 3D cameras, and in some cases feature a voltage supply over Ethernet (PoE). Sensors can be integrated via IO-Link for distance and height measuring purposes. Thanks to the high-performance multi-core processor featuring hardware support, the SIM4000 enables image preprocessing and handling of input and output signals in real time. The integrated HALCON library also makes it possible to find solutions for sophisticated image processing tasks

Technical features

Wide range of connections with 25 interfaces for Ethernet-based fieldbuses, cameras, illumination, sensors, encoders, and more besides 8-gigabit Ethernet interfaces for rapid image transmission Fieldbus and Ethernet interfaces with communication protocols such as OPC-UA and MQTT provide preprocessed data (edge computing) for the control and for cloud computing in parallel “dual talk”, thereby allowing networking for digital factories. Precise synchronization of input and output signals Illumination control and supply IO-Link master connections Enclosure rating IP 65
