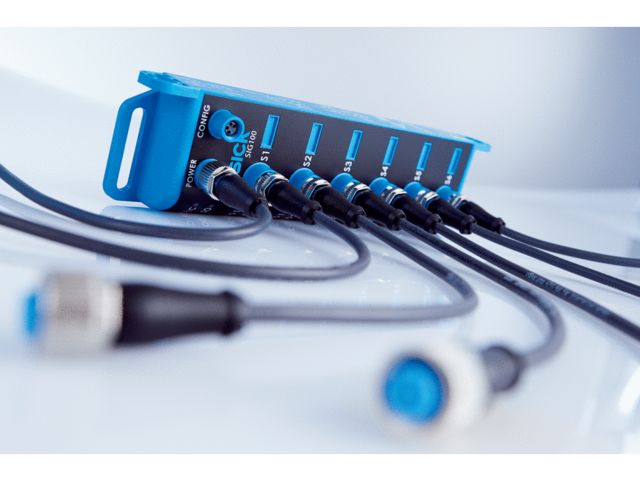

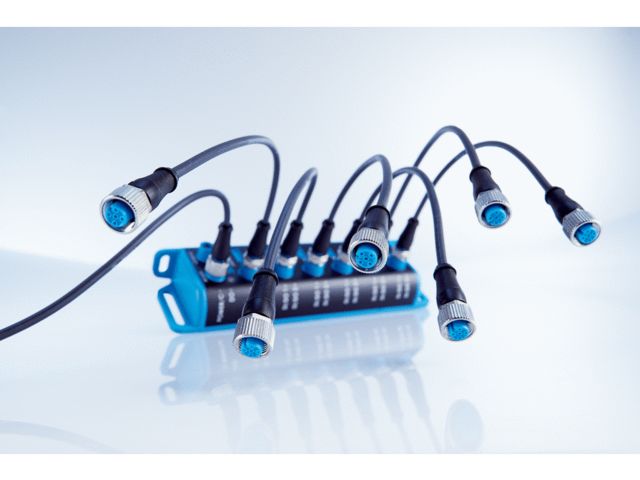

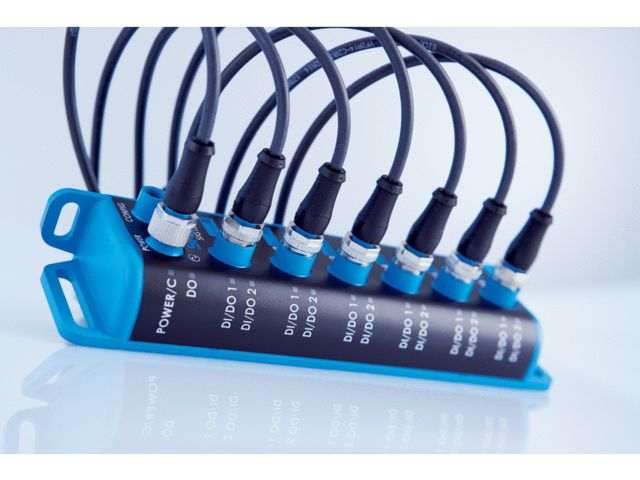

Sensor Integration Gateway SIG100 : SIG100-0A0111100 SICK

Sensor Integration Gateway SIG100 : SIG100-0A0111100

Sensor accessories

Vote

Ask for a quote Receive Documentation Contact the supplier

The SIG100 Sensor Integration Gateway is an IO-Link sensor hub which makes collecting and monitoring digital standard signals easier than ever. Logical decisions are made based on the user configuration, and the results are transmitted via IO-Link to any IO-Link master. Devices are parameterized quickly and easily via an integrated USB interface and the SOPAS ET graphical user interface. For various applications, a drag & drop logic editor enables the quick and easy creation of an autonomous sensor system which can be operated separately from the central controller (PLC).

Type: SIG100-0A0111100 Further functions: USB connection for easy configuration of the SIG100 Sensor Integration Gateway with SOPAS ET, the engineering tool from SICK, Logic editor is available for easy configuration of logic functions I/O connection: 6 x M12, 5-pin female connector, A-coded Connection Power Main: 1 x M12, 5-pin plug, A-coded Connection CONFIG: 1 x M8, 4-pin female connector, USB 2.0 (USB-A) IO-Link: V1.1, ≤ 38,4 kBaud, COM2 Logic editor: yes
