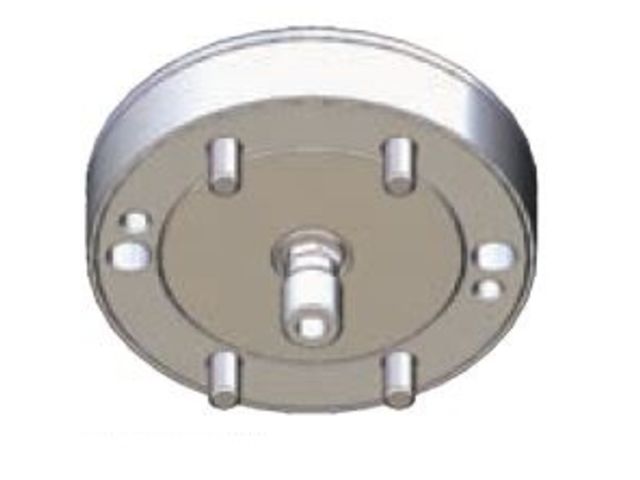

Quick-Change Mounting Plate M 8.302 ROEMHELD

Quick-Change Mounting Plate M 8.302

Positioners and Tightening components

Vote

Ask for a quote Receive Documentation Contact the supplier

Application

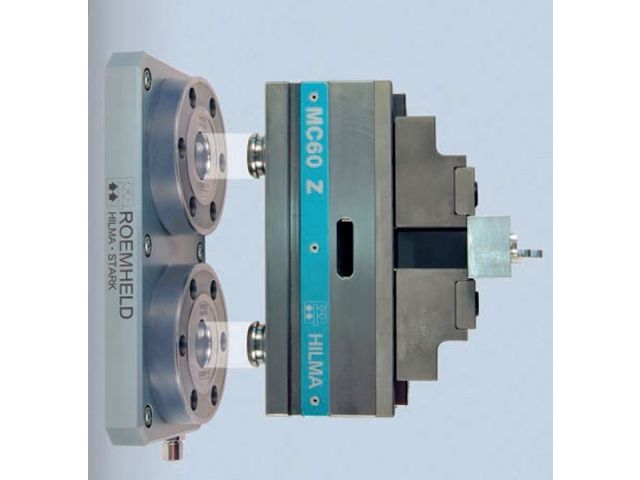

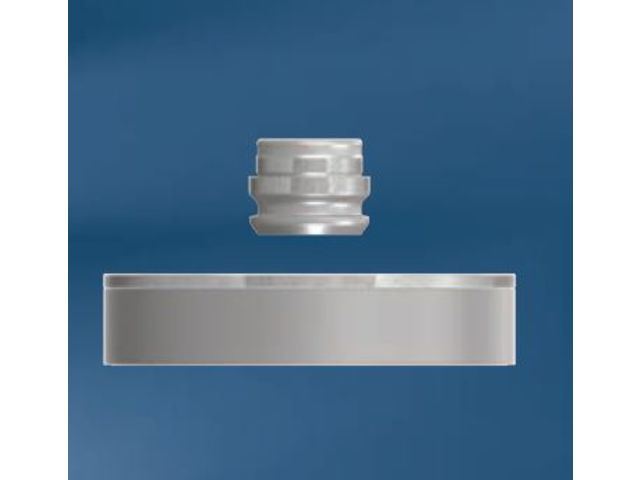

The quick-change mounting plate can be mounted onto all modulog modules and devices with interface 140 x 140 mm. The built-in STARK zero point clamping system SPEEDY easy click allows a very fast workpiece change. A prerequisite is that the workpieces are mounted on base plates which are equipped with a draw-in nipple for the SPEEDY easy click. This system is particularly suitable,
• when workpieces must be frequently changed very quickly at the assembly station.
• when different workpieces or parts families are to be routed through one assembly station.
• when workpieces are to be routed through several assembly stations.
• when the workpiece with the required base plate is still manually tradable.

Advantages
● modulog interface
● Workpiece change in seconds by SPEEDY easy click
● Engages immediately without any energy supply!
● Immediate build up of the clamping force 5 kN
● Max. retention force 10 kN
● Pneumatics for unclamping available everywhere
● Radial positioning by locating bolts
● Snapper as a safety against falling out in the changing position

Download the complete technical features
