Robotic sprayer for 2 component water-based material : PPH 707 ICWB 2K SAMES KREMLIN

Robotic sprayer for 2 component water-based material : PPH 707 ICWB 2K

Equipment and supplies for painting

Vote

Ask for a quote

Presentation

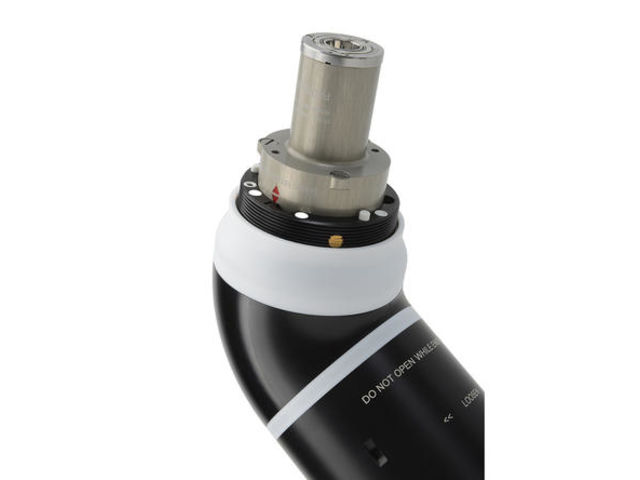

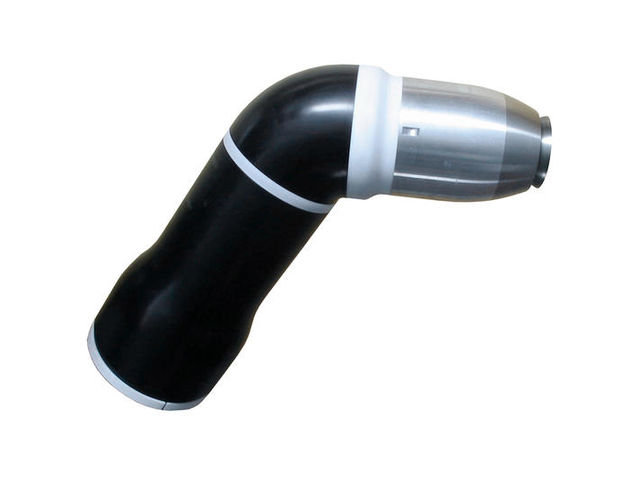

PPH 707 SB ICWB 2K is a sprayer dedicated to an electrostatic application with internal charge of 2 component water-based paints. It requires an additional insulated supply system.
It is equipped with the static mixer located just before the bellcup injector which helps to reduce the mixed paint volume to only 2cc.

Low material loss
High reliability
Easy to maintain

Performance

High rotation speed
High voltage unit
Hi-TE dual shaping air
Mix & paint embedded system

Productivity

Static mixer in the head
Valve close to mixer
Remote bell monitoring device
Easy to upgrade PPH 707 SB to ICWB 2K (same TCP & body)

Sustainability

High reliability for Automotive paintshop
Microvalves with bellows available for hardener supply circuit
Long life high voltage unit
2.5 million cycles life of valves
Titanium bellcup for longer life
*7 years/30,000h warranty turbine
Easy to maintain
Easy tear down parts in contact on hardener
No mixed material in robot arm
No mixed material can return back in the circuit
Magnetic bellcup fastening system
Quick disconnect

*whichever is the sooner

Technical features

Weight: 6.06 (13.36) kg (lbs) Viscosity Scale (min-max) : 20 - 40 seconds FORD Cup#4 Standard Material Supply Pressure : 6 - 8 (87 - 116) bar (psi) Maximum Material Pressure : 10 (145) bar (psi) Minimum Paint Flow : 30 (.008) cc/min (gal/min) Standard Paint Flow : 500 (.132) cc/min (gal/min) Maximum Paint Flow : 1000 (.264) cc/min (gal/min) Hardener Resistivity (min-max) >10 MOhm.cm Rotation Speed : 15 - 85000 rpm Voltage Max : 100 kV
