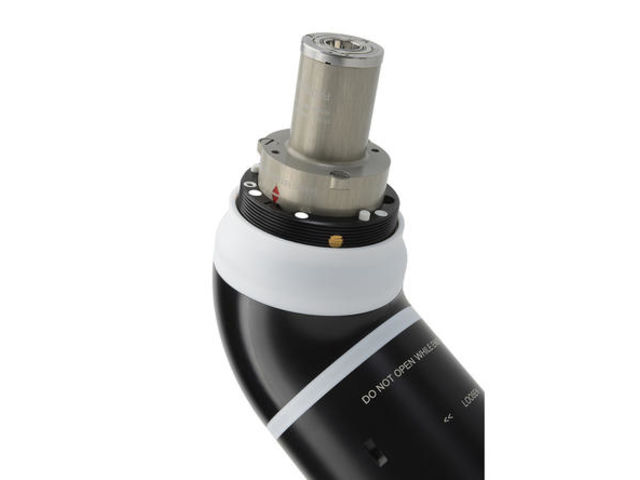

Robotic Rotary Atomizer for Solvent-Based Material : PPH707 SB

Equipment and supplies for painting

Vote

Ask for a quote

Presentation

A sprayer designed for electrostatic applications with internal charge of solvent-based paint

High performance bell atomizer
High reliability for Automotive applications
Easy to maintain

Performance

High rotating speed
High voltage unit
Hi-TE dual shaping air

Productivity

Full Bell/Bell process : Primer, Basecoat 1, Basecoat2, Primer
Fast flexible pattern
Lightweight for any painting robot
Remote bell monitoring device

Sustainability

High reliability for Automotive applications
Long life High Voltage Unit
2.5 million cycle valve life
Titanium bellcup for longer life
7 year/30 000 hr turbine warranty*

Easy to maintain

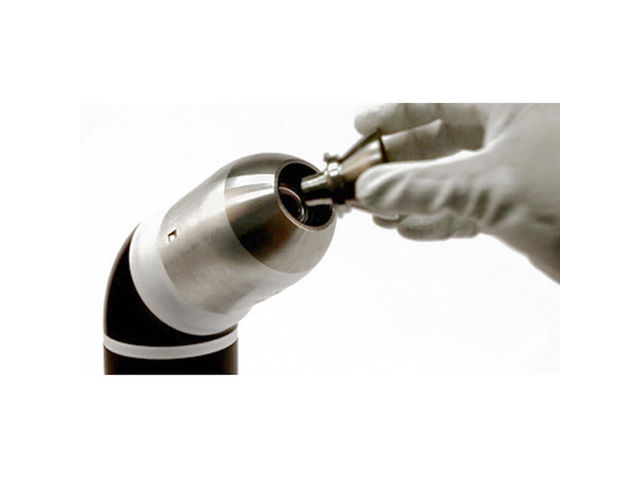

Magnetic bellcup fastening system
Quick disconnect
Easy access to valves & fittings
Specific body design prevents dust & droplets
No calibration tool required

*whichever is sooner

Technical features

Weight : 7 (15) kg (lbs) Viscosity Scale (min-max) : 20 - 40 seconds FORD Cup#4 Standard Material Supply Pressure : 6 - 8 (87 - 116) bar (psi) Maximum Material Pressure : 10 (145) bar (psi) Minimum Paint Flow : 30 (0.008) cc/min (gal/min) Standard Paint Flow : 500 (.132) cc/min (gal/min) Maximum Paint Flow : 1000 (.264) cc/min (gal/min) Paint Resistivity (min-max) >3 coil / >10 no coil MOhm.cm Rotation Speed : 15 - 85000 rpm Voltage Max : 100 kV

Download the complete technical features
