Rotary Bell Water-Based Atomizer : PPH 707 EXT-ST

Equipment and supplies for painting

Vote

Ask for a quote

Presentation

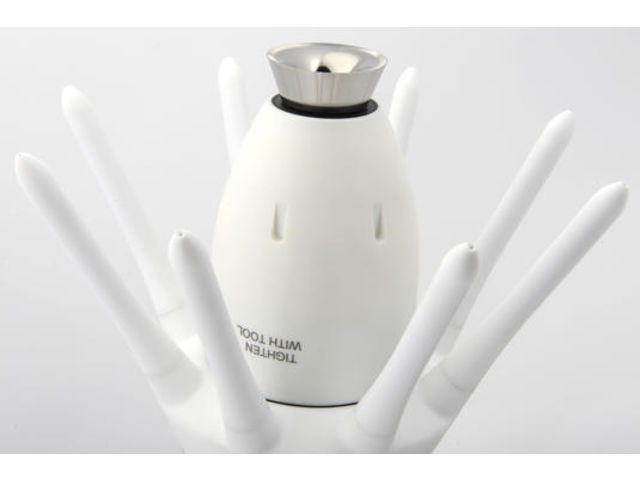

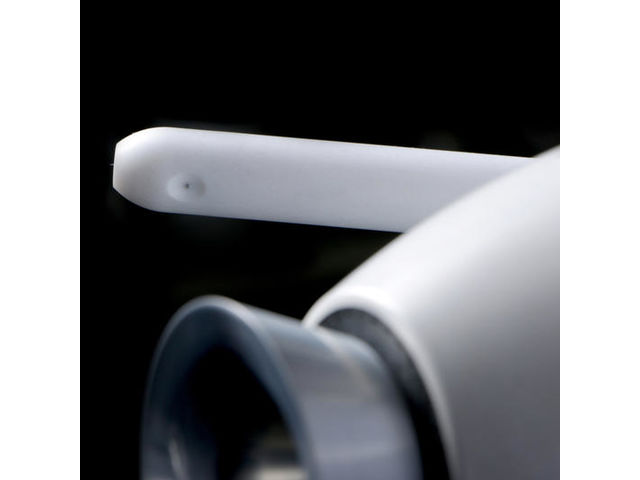

The electrostatic charge is indirect also called External Charge. The particles get electrically charged by passing close to electrodes outside to the sprayer. Equipped with Hi-TE spraying technology, the performance, transfer efficiency and quality of finishing is a reference for external charge applicators.

The fluid delivery system remains ground wired:

• No necessary modification of the existing paint circuit.
• From an existing solvent installation switched to waterborne, only the PPH 707 EXT-ST would be required in order to spray the new material which means lower cost.

High productivity
Easy to integrate
High finishing quality

Performance

Variable pattern during spraying for seamless transitions between small and large parts
Implementation on existing installations without modification of paint supply system
No isolation system neccessary
Unlimited number of colors

Productivity

High transfer rate
Can spray high flow rates at very high tool speed (robot movement up to 1 m/s)
Large pattern size (between 325 and 475 mm)
Quick color change

Sustainability

Long life HVU (High Voltage Unit)
7 year/30 000 hr turbine warranty*
2.5 million cycle valve life

Technical features

Maximum Material Pressure: 10 bar (psi) Standard Material Supply Pressure : 6 - 8 bar (psi) Maximum Paint Flow: 700 cc/min (gal/min) Minimum Paint Flow : 30 cc/min (gal/min) Maximum Air Pressure : 10 bar (psi) Weight: 6.6 kg (oz) Air Consumption : 126 max m3/h Transfer Ratio : 80 % Rotation Speed: 15000 - 70000 rpm Voltage Max: 85 kV
