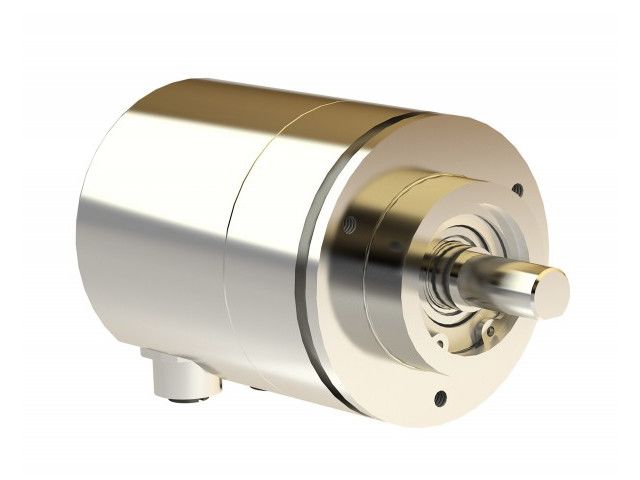

Rotary encoder HBN/S3 SIL2 TWK-ELEKTRONIK GmbH

Rotary encoder HBN/S3 SIL2

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

A correct mechanical connection between the customer and sensor shaft ensures that the sensor precisely detects the customer shaft's rotations. A safe position is provided by the plausibility check of two sensor systems. Detected errors are evaluated. The CAN interface outputs the validated position value and speed signal via the CANopen Safety protocol within an SRDO (Safety Relevant Data Object) using 2x2 messages (normal and inverted). The rotary encoder meets the conditions of safety level SIL2 according to IEC 61508 and performance level "d" according to EN13849. The prerequisite of safety-relevant operation is a failsafe master.

Inkremental or absolute: Absolute Interface: CANopen Single- or Multiturn: Singleturn Design: 58mm Special feature: High-resolution, SIL2/PLd high-resolution Housing material: Aluminium, Stainless steel Resolution: 65.536 (1 to 4.063.232) steps/360° Code type: Binary Profile: CANopen according to CIA, DS 406 revision 4.0.1, CANopen safety SIL2 Electrical connection: M12 connector (bus in/bus out)
Download the complete technical features
