TWK-ELEKTRONIK GmbH

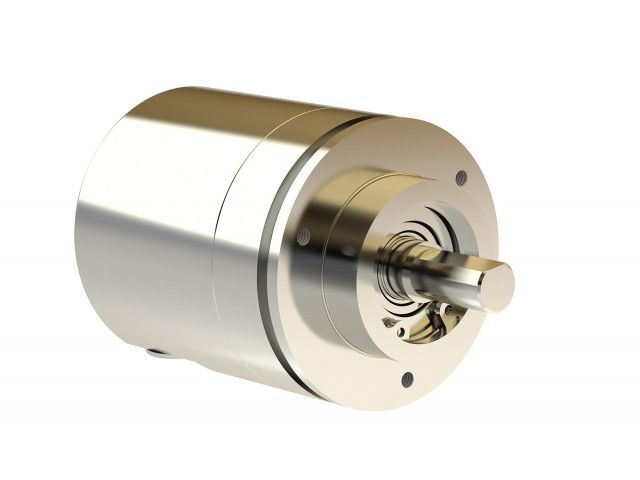

Rotary encoder TBA58/R2 redundant TWK-ELEKTRONIK GmbH

Rotary encoder TBA58/R2 redundant

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

Robust housing (wall thickness 5 mm) made of seawater resistant aluminium (AlMgSi1) or stainless steel (material: 1.4305 optional 1.4404) - Redundant power supply as well as sensors and electronics - Common shaft (measuring axis) with ball bearing, shaft sealing ring and permanent magnets in prechamber - Sensor circuit consisting of ASICs with Hall elements and interface electronics in closed main chamber - The contactless electromagnetic sensor systems are extended by a 12-bit D/A converter so that the measured variable is available as an analog signal from 0 (4) to 20 mA or 0 to 10 VDC - Electrical connections via connector M12x1.

Measuring range: 360° Interface: Analogue Single- or Multiturn: Singleturn Design: 58mm Special feature: Redundant Housing material: Aluminium 3.2315 Flange: Clamped flange Shaft: 10mm with flattened area Signal path: CCW, CW Electrical connection: Device connector M12
