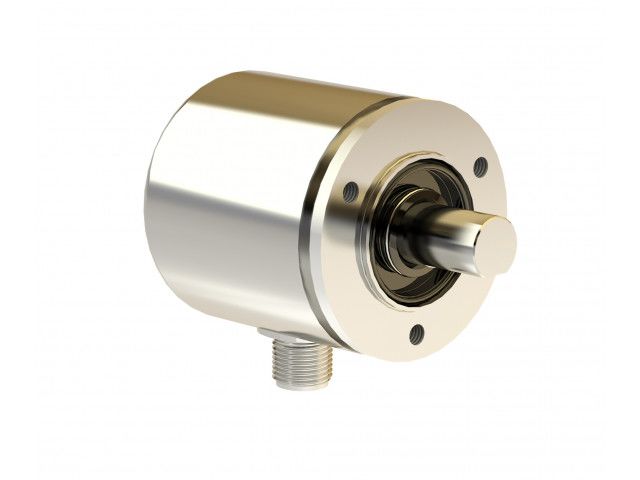

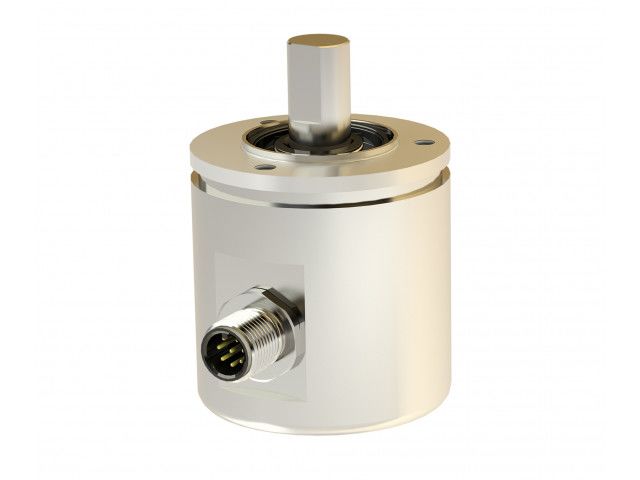

Rotary encoder TMA50 TWK-ELEKTRONIK GmbH

Rotary encoder TMA50

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

Robust case with wall thickness of 5 mm either in seawater resistant aluminum or in stainless steel - shaft in stainless steel - rotating components with permanent magnet in front chamber - electronic circuit with ASiC and Hall elements and interface components fitted within main chamber, separated from rotating components by a metallic wall - integral counter for the acquisition of revolutions, with non - volatile storage - optional potting against water jets (IP 69K) - electrical connections via round plug or lead exit. Note (TMA, TMN): The device restores the position value in case the supply voltage is cut off, provided that the shaft is not deflected by more than ±90° during the interruption of the supply voltage.

Inkremental or absolute: Absolute Interface: Analogue Single- or Multiturn: Multiturn Design: 50mm Special feature: Digital multiturn memory Housing material: Aluminium, Stainless steel Flange and shaft: Synchroniser flange Measuring range: 3600 in angle degrees Signal path: CCW, CW Electrical connection: Cable 1m, Device connector M12 x 1
Download the complete technical features
