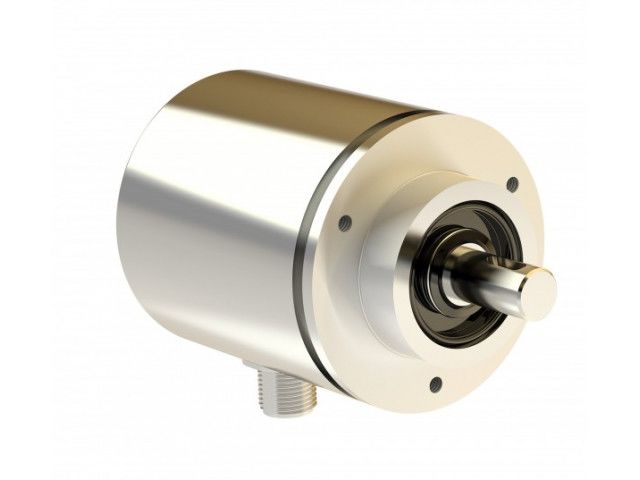

Rotary encoder TRN58/C3 TWK-ELEKTRONIK GmbH

Rotary encoder TRN58/C3

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

A positive-locking mechanical connection between the cus-tomer’s shaft and the sensor shaft ensures that the magnet in the sensor shaft precisely reflects the rotation of the cus-tomer’s shaft. With the TBN model, one rotation (i.e. max. 16,384 steps) is recorded.With the subsequent absolute transmission, the TRN shaft encoder reaches a measuring range of up to 4096 rotations. The position and speed values (PDO - Process Data Object) are output via the CANopen protocol.

Inkremental or absolute: Absolute Single- or Multiturn: Multiturn Interface: CANopen Design: 58mm Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Resolution: 4096 steps/revolution 12-bit, 8192 steps/revolution 13-bit, 16384 steps/revolution 14-bit Code type: Binary Measuring range: 4096 revolutions Signal path: CCW, CW Profile: CANopen category 3, DIN EN13849, Standard CANopen C3, Profil No. 4.0.2
Download the complete technical features
