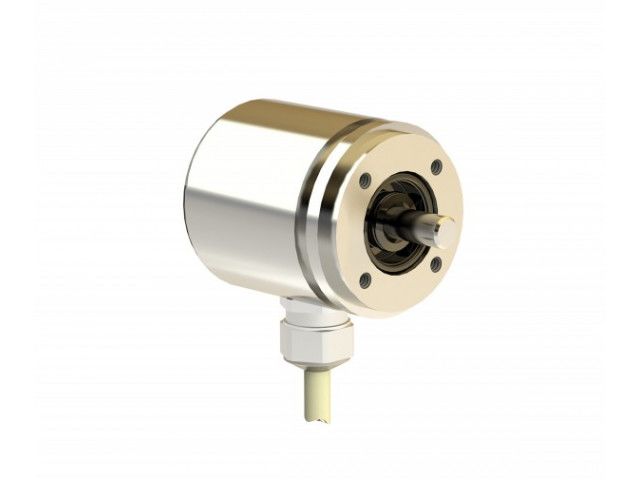

Rotary encoder TBN36 TWK-ELEKTRONIK GmbH

Rotary encoder TBN36

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

Robust aluminium or stainless steel housing (wall thicknesses up to 5 mm) - stainless steel shaft and ball bearing - ball bearing with Simmer ring, rotor with shaft and permanent magnet mounted in pre-chamber - sensor circuit consisting of ASIC with Hall elements and interface electronics in enclosed main chamber - housing protection type IP 69K additionally cast - electrical connection via cable (open cable ends).

Inkremental or absolute: Absolute Interface: CANopen Single- or Multiturn: Singleturn Design: 36mm Housing material: Aluminium, Stainless steel Flange and shaft: Synchroniser flange Resolution: 4096 steps/360°<) Code type: Binary Profile: CANopen according to CiA, DS 406 revision 3.0 Electrical connection: Cable 1m
Download the complete technical features
