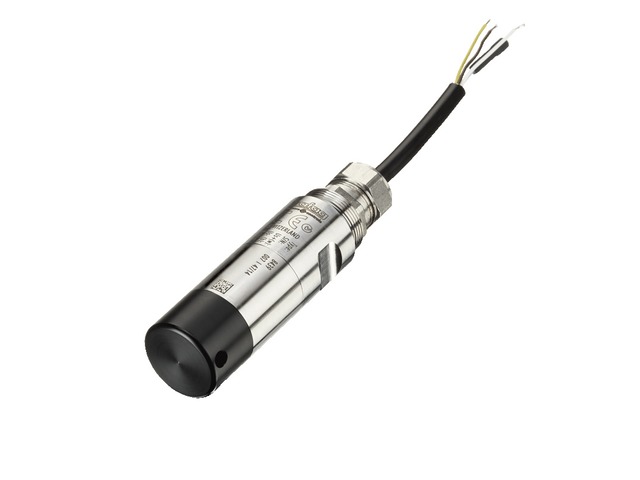

Submersible Pressure Transmitter ECL 8439 Trafag AG sensors & controls

Submersible Pressure Transmitter ECL 8439

Pressure transmitter

Vote

Contact the supplier Receive Documentation Ask for a quote

Trafag pressure transmitters are used for electronically measuring and evaluating pressure. Over the decades they have proven themselves in a multitude of demanding applications in harsh environments. They are available in many different designs to suit pressure and electrical connections, measuring procedures, electrical output signals and certifications (CE, EX, rail and ship). Superior technology and precise manufacturing ensure that the transmitters work perfectly. This is especially important in applications where high requirements are placed on long-term stability, vibration resistance, electromagnetic compatibility, shock resistance or temperature insensitivity.
The new Submersible Pressure Transmitter ECL is based on Trafag’s own thick-film-on-ceramic technology. Together with the inhouse developed high performance ASIC chip electronics it ensures a high level of accuracy over a wide temperature range.
Applications
Process technology
Water treatment (wastewater, grey-water, drinking water)
Seawater
Level of oils and fuels

Main features
Suitable for thick and viscous media
Different materials for optimum media compatibility
Lightning protection integrated

Applications: Process technology; Water treatment ) Main features: Suitable for thick and viscous media Measuring principle: Thick film on ceramic Measuring range: 0 ... 0.1 to 0 ... 2.0 bar Output signal: 4 ... 20 mA Accuracy @ 25°C typ.: ± 0.3 % FS typ. Media temperature: -10°C ... +70°C Ambient temperature: -10°C ... +70°C Output / supply voltage: 4...20 mA: 24 (9...32) VDC Rise time: Typ. 1 ms/10...90 % nominal pressure
Download the complete technical features
