Switching automation light grids WLG - WLG12-V537 SICK

Switching automation light grids WLG - WLG12-V537

Other sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

Wave length : 650 nm
Supply voltage Vs : DC 18 V ... 30 V 1)
Power consumption sender : 80 mA
Ripple : < 5 Vpp
Output current Imax.: ≤ 100 mA
Output load capacitive : 100 nF
Output load inductive : 1 H
Initialization time : 0.6 s

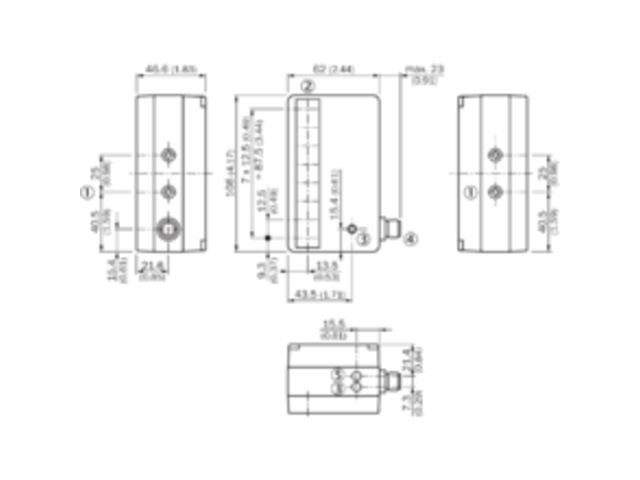

Dimensions (W x H x D) : 62 mm x 106 mm x 46.6 mm
Housing material : Plastic
Indication : LED
Enclosure rating : IP67
Circuit protection :UV connections, reverse polarity protected, Output Q short-circuit protected, Interference pulse suppression
Weight : 230 g
Front screen : PMMA
Output mode : Q dark switching
Teach-in input : PNP
