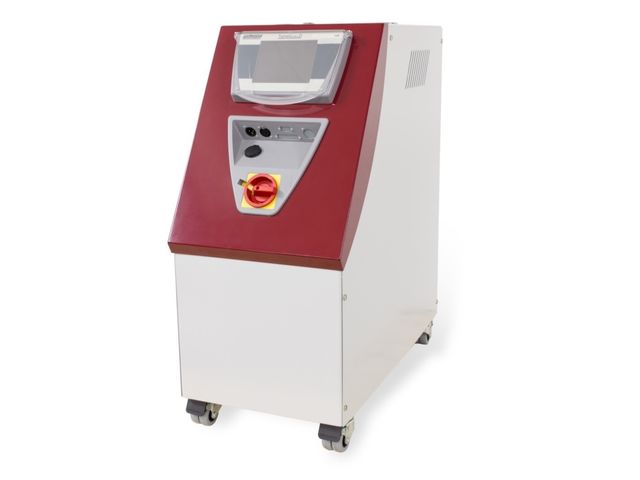

TEMPRO plus D120/1-L

Temperature regulator

Vote

Ask for a quote

Presentation

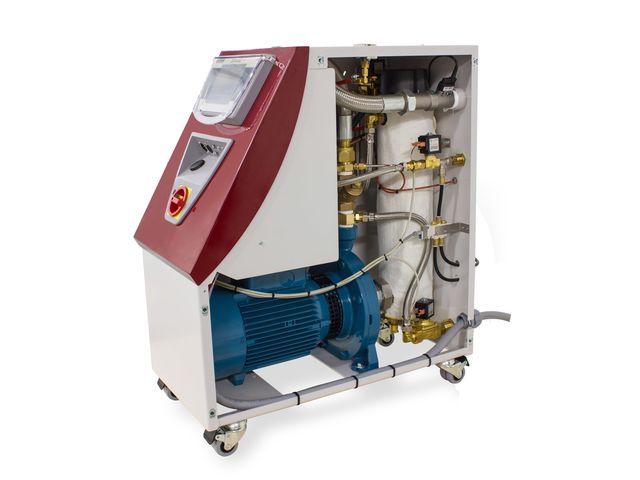

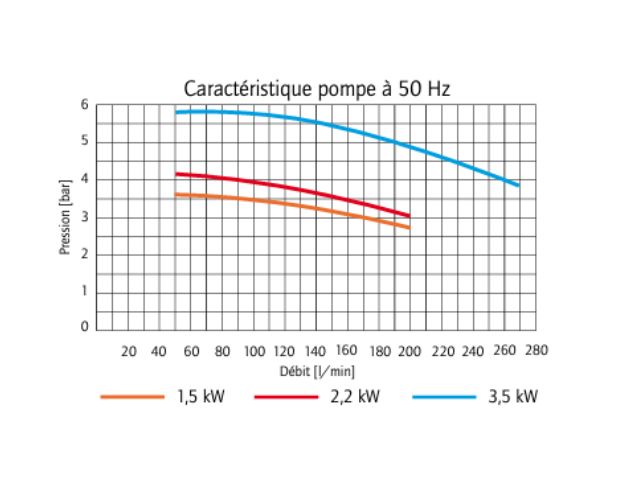

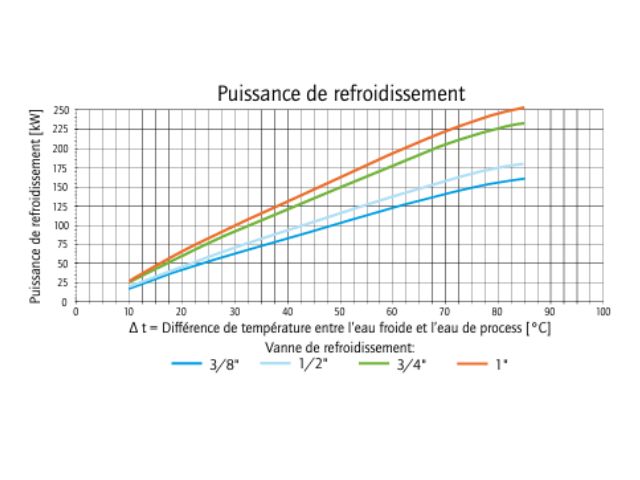

The latest development is the TEMPRO plus D120/1-L, a generously dimensioned single zone temperature controller with water as a tempering medium. It is designed for a temperature range of up to 120°C. The “L” in the product name stands for “large” – in reference to this model's large heating and pump capacities. The pump is rated for 4 kW with a maximum pressure of 5.9 bar and a flow rate of 280 l/min. The heating capacity is 36 kW. This unit can be used wherever large machine tools are operated, i.e. especially where production runs initially require high heat output followed by high cooling. The options that are available for the TEMPRO plus D120/1-L are in principle the same as for the other models of the D range of temperature controllers. The new model is also equipped with a 5,7" user-friendly touch-display. Via this display, the unit can be controlled, and all the different parameters can be read out. It is possible to equip the device with a frequency controlled 5,3 kW SpeedDrive pump, and also with an optional proportional cooling valve. Many differing interfaces can be realized. This temperature controller can also be integrated into the control of the processing machine, following the WITTMANN 4.0 concept.
