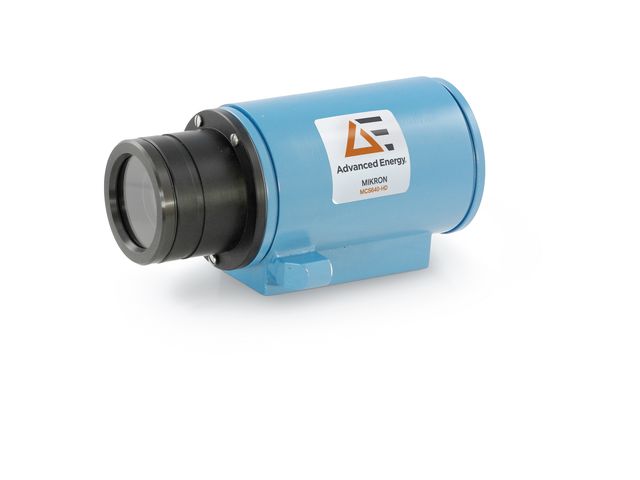

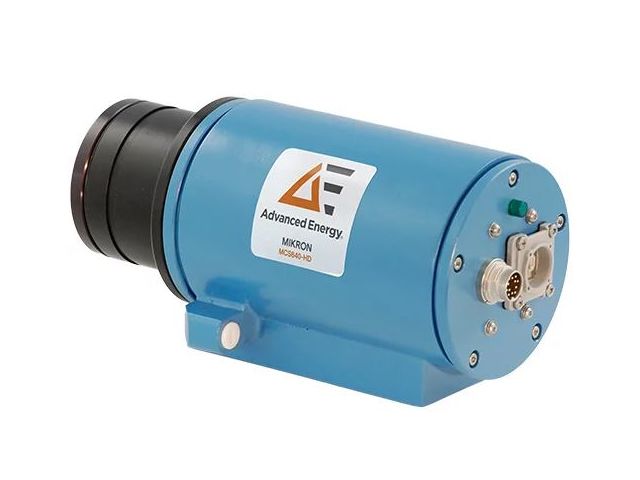

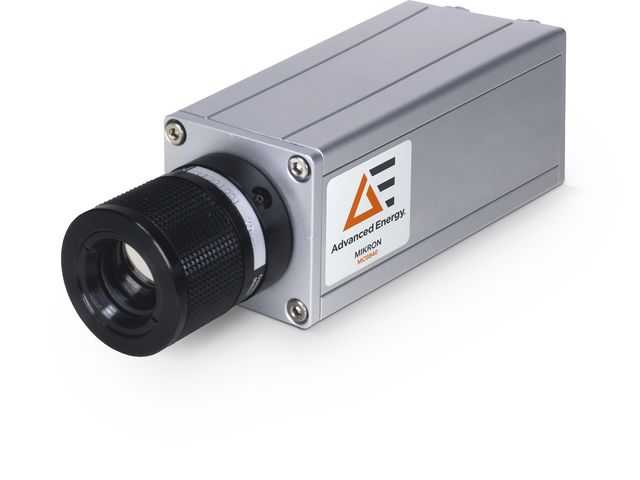

Thermal Imager : MCS640 LumaSense Technologies GmbH

Thermal Imager : MCS640

Thermal infrared cameras

Vote

Ask for a quote Receive Documentation Contact the supplier

Fixed installation thermal imaging system for high-temperature applications e.g. on metal surfaces. The camera detects temperatures in ranges between 600 and 3000 °C.

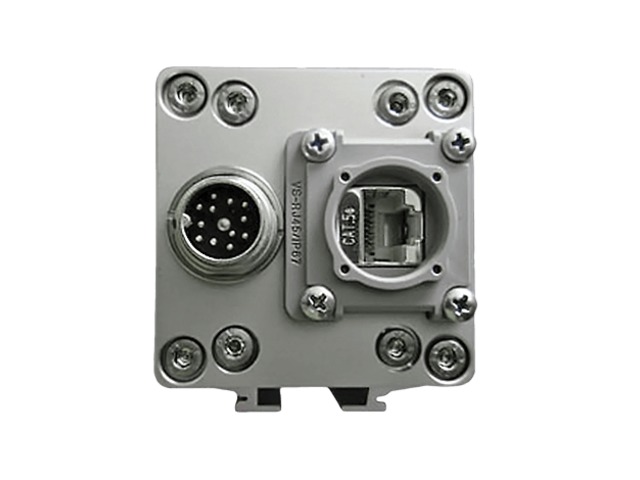

Moreover, the camera features a 1000 Mbit/s Gigabit Ethernet for data transmission.

Uncooled, fully radiometric detector (UFPA) Spectral range: NIR (short wavelength), customer specific adaptation on request Display of temperature at 307.200 measurement points (640 x 480 pixel) for even the smallest objects Unique superior measurement accuracy of 0,5% of reading Display of images in real-time at 60 Hz (60 images per second) for dynamic temperature processes 1000 Mbit/s Gigabit Ethernet data transmission Compact in size with a small weight of 0.7 kg for easy installation Wide range of optics for macroscopic and microscopic applications Support for I/O module, OPC, and modbus through LumaSpec RT Software
Download the complete technical features

Preheating Annealing Tempering Welding Hardening

Drop your rating on Thermal Imager : MCS640

Your answer to the rating from -

OTHER PRODUCTS THERMAL INFRARED CAMERAS FROM LumaSense Technologies GmbH

Thermal imaging system : FLARESPECTION

Thermal imaging system : FLARESPECTION

 Ask for a quote
Thermal System : ThermalSpection CVM

Thermal System : ThermalSpection CVM

 Ask for a quote
Thermal system : BOILERSPECTION™ SD

Thermal system : BOILERSPECTION™ SD

 Ask for a quote
Thermal Imager : FurnaceSpection

Thermal Imager : FurnaceSpection

 Ask for a quote

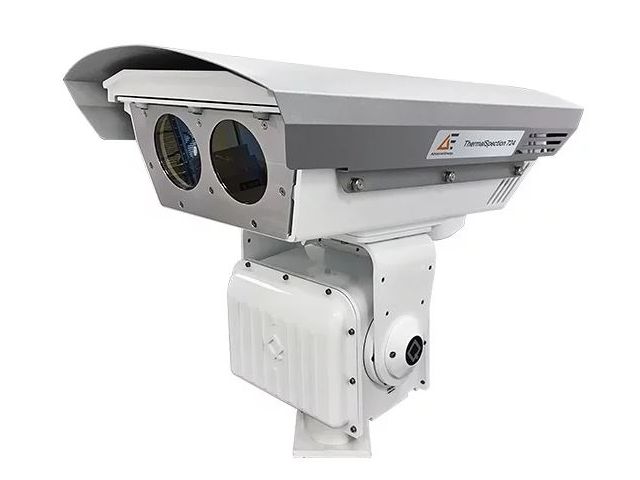

Thermal Imager : ThermalSpection 724
