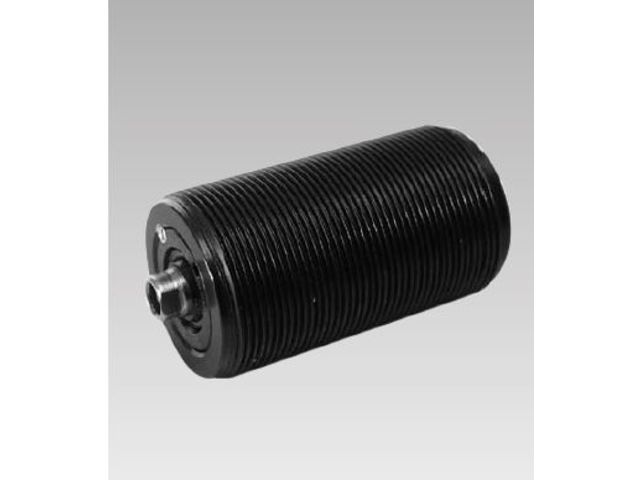

Threaded-Body Universal Cylinder B1.309 ROEMHELD

Threaded-Body Universal Cylinder B1.309

Positioners and Tightening components

Vote

Ask for a quote Receive Documentation Contact the supplier

Description

The threaded-body universal cylinders are delivered with the same piston diameters and strokes as the well-proven block cylinders. Hydraulic connection is exclusively effected at the cylinder bottom by hydraulic tubes or hoses. Sealing of the case-hardened piston rod is made by a tandem sealing with minimum leakage and a wiper.

Advantages

● 6 piston diameters from 16 up to 63 mm
● 3 different strokes per size
● Sealing with very little leakage
● Alternatively single acting with spring return or double acting
● Connecting thread at the cylinder bottom
● Axial regulation due to external thread
● Lock nuts as per DIN 1804 can be used
● Space-saving fixing in fixture walls
● Swarf-protected tubing is possible
● Piston rod with internal thread for fixing of different contact bolts

Download the complete technical features
