“ Suitable for all types of industrial heating systems, whatever the application.
Configurable control input: 0-10 V – 0/4-20 mA
Built-in PID temperature controller
Conduction: BURST firing, half single-cycle, phase angle
Power control: UxI, U², I², U, I, Uext, Iext ”
Ask for a quoteReceive DocumentationContact the supplier

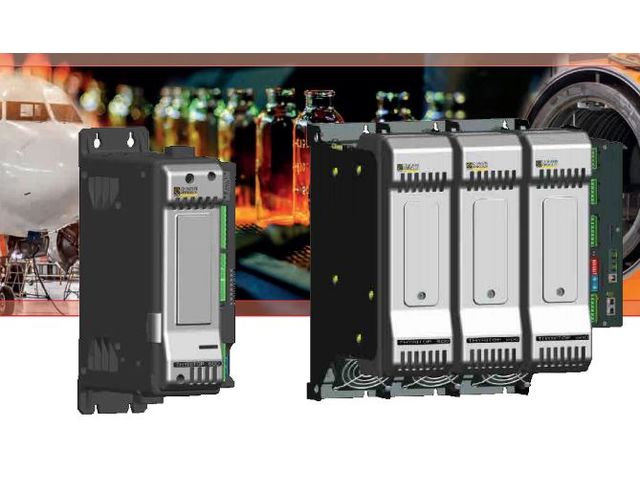

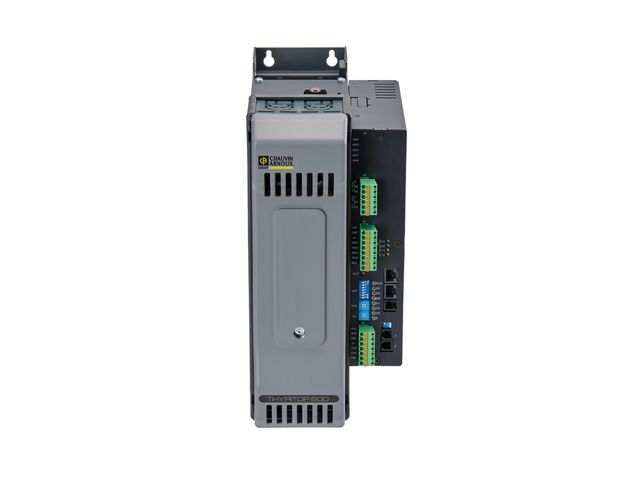

The accurate, modular THYRITOP 600 range of power controllers can be used to manage the electrical power of any type of industrial heating element, offering extensive modularity for all single-phase, split-phase and three-phase applications. The THYRITOP 600 models offer an exclusive temperature measurement function on the power terminals to prevent any risk of cable overheating. They are also equipped with an additional function for measuring the air temperature at the fan outlet. This keeps your installations safe.
Low thermal coefficient
Nickel-chrome resistor
Medium and long-wave infrared lamps
Low thermal coefficient
Kanthal™ and Super Kanthal™ (MiSo2) heating resistors
Short-wave infrared lamps
Transformers
Inductors
Inductive loads

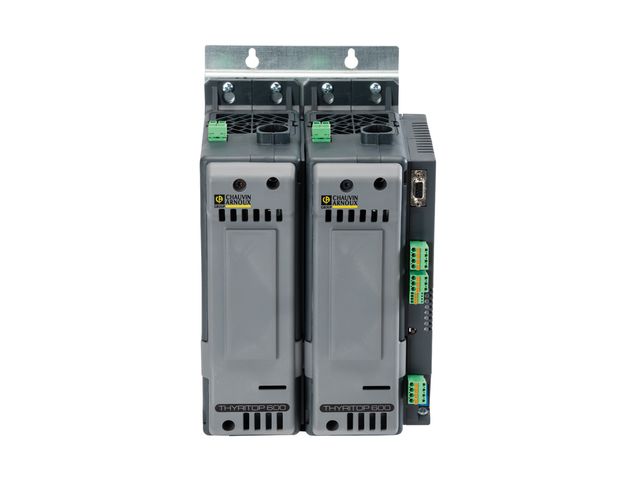

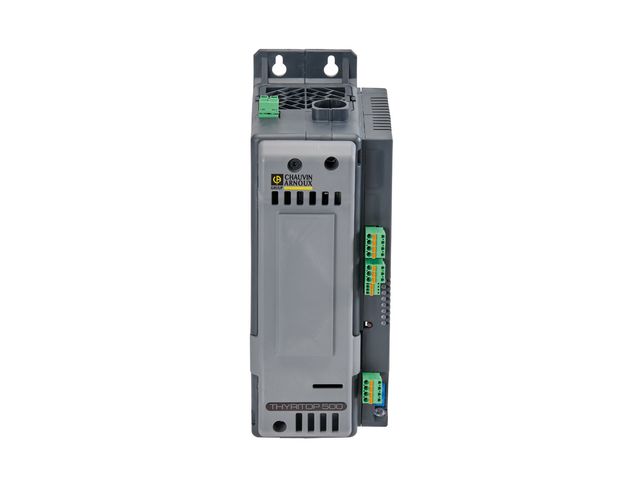

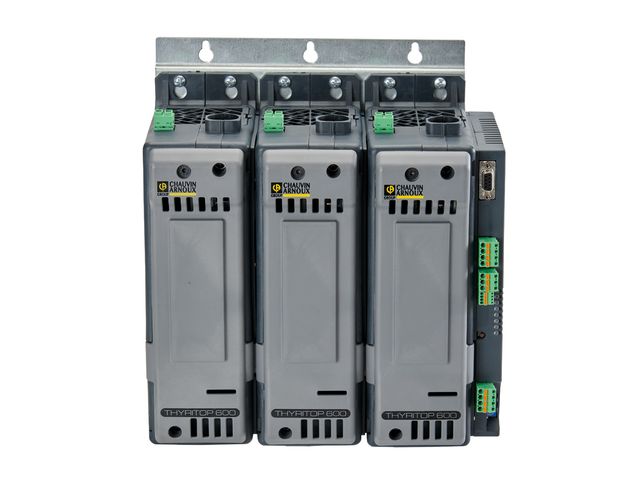

3 models are available : single-phase, bi-phase, tri-phase
40 A – 60 A – 100 A – 150 A – 200 A – 250 A – 300 A power controllers
400 A – 500 A – 600 A power controllers
Main specifications
Control: I - I² - V - V² - P
Current ranges: 40 A – 60 A – 100 A – 150 A – 200 A – 250 A – 300 A – 400 A – 500 A – 600 A
Rated voltage ranges: 480 Vac – 690 Vac
Configurable control input: 0-10 V – 0/4-20 mA
Activation: Burst mode – Half single-cycle with zero voltage switching – Phase angle
Indication: Diagnostic LED, relay
Communication : MODBUS RTU et MODBUS TCP
Compliant with the CE/UL directives Advanced customization and parameterization with the FREE PYROTOOLS software. A simple, clever tool for:
Configuration of the parameters
Display of the data and analysis of the parameters (measured values, setpoints, alarms, etc.)
Data recording and archiving
The cable for connecting the PC to the THYRITOP 600 (for configuration) is sold separately. &Order with the code P01665999 Direct display with THYRITOP REMOTE, a simple unit for immediate reading of the main current and voltage parameters without installing any extra software. Connected via a D-SUB 9-pole connector, it is installed directly on the THYRITOP 600's front panel using a magnetic plate. Order with the code P01666600
Available options
Load break alarm, total or partial
Current limitation
Control of V, I, P
Fieldbuses
External U(V) and I(A) measurements
Pocket Thyritop for viewing the parameters and measured values
Complementary logical, relay and analogue I/Os
PYRO-LM: PYRO LOAD MANAGEMENT MODULE for optimizing and limited the network load
Communication :
- PROFIBUS et PROFINET
- DEVICENET et EtherNet/IP
- ETHERCAT
- CANOPEN
Control: I - I² - V - V² - PCurrent ranges: 40 A – 60 A – 100 A – 150 A – 200 A – 250 A – 300 A – 400 A – 500 A – 600 ARated voltage ranges: 480 Vac – 690 VacConfigurable control input: 0-10 V – 0/4-20 mAActivation: Burst mode – Half single-cycle with zero voltage switching – Phase angleIndication: Diagnostic LED, relay
Industrial furnaces for heat treatments and metallurgyMelting, sintering and nitriding furnacesFurnaces for ceramics and precious metalsIndustrial dryers | Autoclaves for composite materialsHeating systems with single and three-phase transformers
