TX2-40 6-axis robot

6 axis robot

“ Speed, performance AND safety ”
Ask for a quote Receive Documentation Contact the supplier

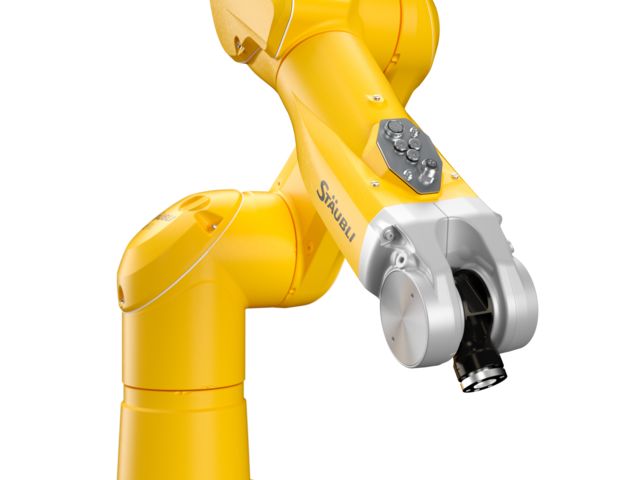

Our fast and precise TX2 industrial robots are the next generation of 6-axis robotic arms. This line of robots provides the ideal combination of speed, rigidity, size and precision. These robots have unique features that make them adaptable to all industries, including sensitive environments.
Optional SIL3-PLe safety functionalities allow high productivity while ensuring Man-Machine collaboration.

The TX2-40 has a payload of up to 2 kg with a maximum reach of 515 mm.

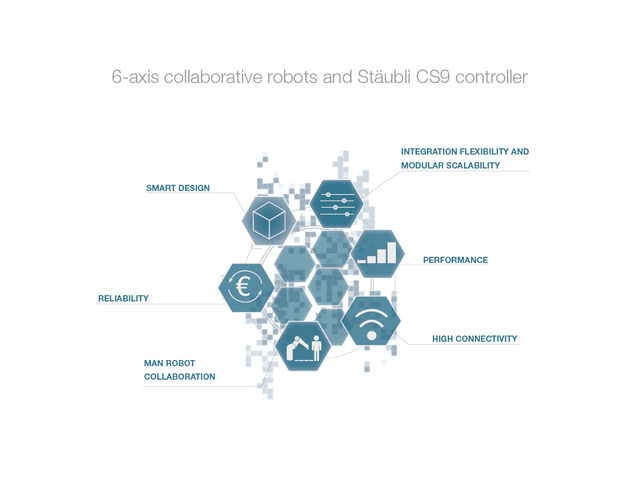

MAIN FEATURES AND BENEFITS

Smart design
  • Hygienic encapsulated 6-axis arm enabled by hollow shaft drives, no external cables
  • Compatible with all environments, from harsh and dirty to sterile
  • Protection and additional installation options available
  • IP65/67 for the entire arm with pressurization kit

Integration flexibility, modular and scalable
  • 360°mounting possibility for flexible integration
  • Large and efficient spherical working range

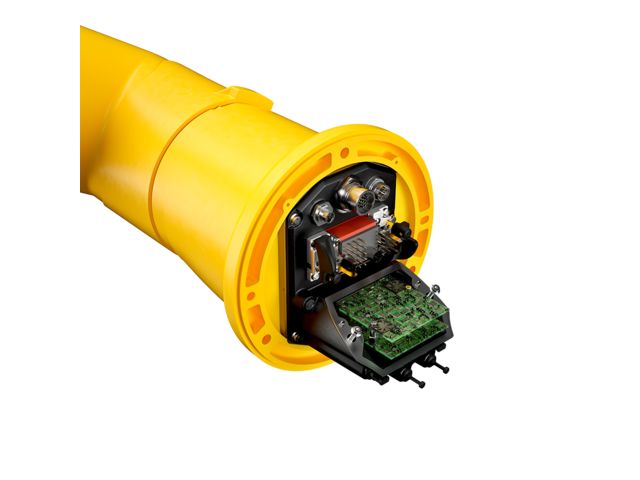

  • Integrated electrical and pneumatic user circuit including Cat5e
  • Sealed vertical cable option bringing additional and smart integration options

High performance kinematics
  • Over 125 years of experience in fast moving technology
  • Light and rigid structure
  • Patented JCS smart gearbox specially designed for compact robots
  • Compatible with NSF H1 food oil with no loss in performance

Collaboratif robot Load capacity : 2 kg Reach : 515 mm Degrees of freedom : 6 Repeatability : ±0.02 mm Protection class (*wrist) : IP65 (*IP67) Attachment methods : 360° mounting possibility Stäubli CS9 controller
Download the complete technical features

All industries Sensitive environments
