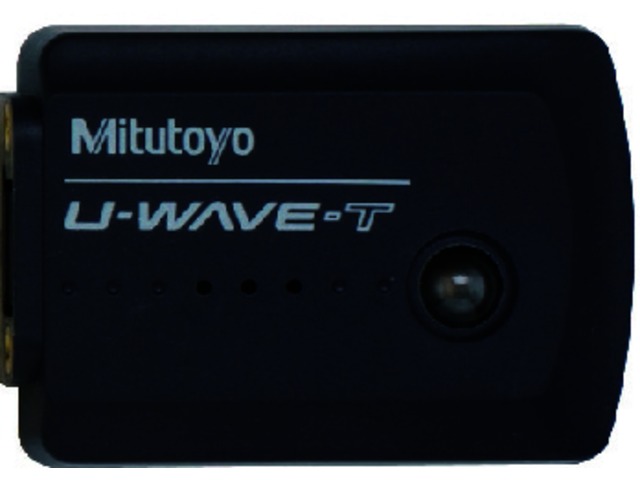

U-Wave T Transmitter, IP67 Type MITUTOYO

U-Wave T Transmitter, IP67 Type

Data acquisition systems

Vote

Contact the supplier Receive Documentation Ask for a quote

This wireless communication system transfers data directly from a Digimatic measuring instrument to a PC, meaning no more cables are needed.
The U-WAVE offers the following benefits:
  • 20 metre communication distance.
  • It allows easy data export straight to Microsoft® Excel® or other applications, using the bundled data interface software.
  • Data transfer is confirmed by the transmitter through a buzzer or LED.
  • An IP67 transmitter is available.
  • You can make 400,000 data transmissions with a single battery.
  • By using special software it will also support a data request from a PC (Event Drive mode). This is ideal if there is no one operating the measuring tool, or if it is installed at an inaccessible side.

Item number: 02AZD730D Remarks:IP67 model Data reception indication:LED Battery life:400 000 transmissions Dimensions (WxDxH):44 x 29.6 x 18.5 mm Mass:23 g Wireless communication protocol:IEEE 802. 15. 4 Power supply:Battery CR2032 Modulation method:DS-SS (Direct Sequence Spread Spectrum) Communication distance:Approx. 20 m line of sight
