Ultrasonic Cleaning Machine - MOT-1000N TIERRATECH SARL

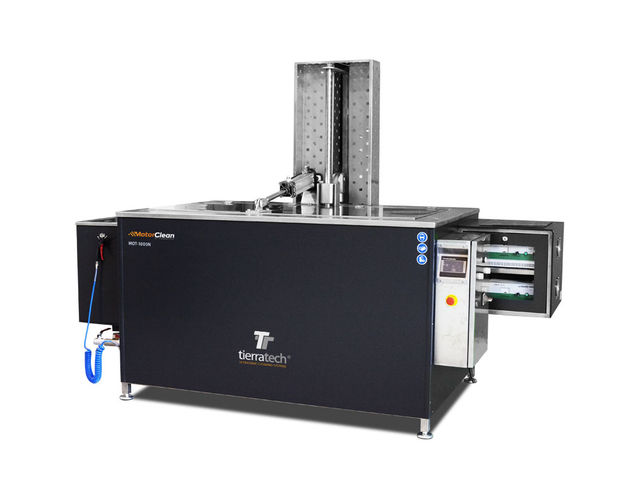

Ultrasonic Cleaning Machine - MOT-1000N

Ultrasonic cleaning equipment

Vote

RklOSVNISU5HIEFORCBBQ0NFU1NPUklFUyAmYnVsbDsgQUlTSSAzMDQgc3RhaW5sZXNzIHN0ZWVsIHRhbmssIDIuNSBtbSB0aGljay4gJmJ1bGw7IEstRmxleCBEdWN0IE5ldCB0aGVybWFsIGFuZCBhY291c3RpYyBpbnN1bGF0aW9uLCAyMCBtbS4gJmJ1bGw7IEV4dGVyaW9yIHN0ZWVsIHBhbmVsbGluZyB3aXRoIGEgc3BlY2lhbC4uLg==

Contact the supplier Receive Documentation Ask for a quote

OTHER PRODUCTS FROM TIERRATECH SARL

Check out all the products from TIERRATECH SARL

FINISHING AND ACCESSORIES
AISI 304 stainless steel tank, 2.5 mm thick.
K-Flex Duct Net thermal and acoustic insulation, 20 mm.
Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
Reinforced pneumatic platform for loading, packing and unloading with capacity for 750 Kg.
½” water inlet ball valve and a 1½” one for drainage.
Silentblock legs, adjustable in height
Heat-insulated stainless steel end-of-day lid.
Compressed air gun to dry parts. Integrated system to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition.
Sloping bottom to facilitate cleaning. • (Optional): filtering system (stainless steel filter with a polypropylene/polyester bag) for residue and mud.



ULTRASONIC CHARACTERISTICS
• Ultrasonic Power: 6800W. (13600W. p-p).
2 Ultrasound generators with a total output power of 3400 W 6800W (13600 W p-p).
Working frequency: 40 KHz with a frequency Sweep System (Sweep System ±2). 4 submersible emitters of 1700W each.

CONTROL PANEL
• 4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
PLC with a temperature model fitted with 7 outputs and 7 inputs.




Capacity: 1000 litres Internal dimensions: 1500 x 900 x 860 mm. (excluding auxiliary tank) Useful measurements: 1410 x 720 x 560 mm. Platform dimensions: 1410 x 720 mm. External dimensions: 2520 x 1320 x 1090 mm. (including auxiliary tank) Weight: 550 Kg. Ultrasonic Power: 6800W. (13600W. p-p). 2 Ultrasound generators with a total output power of 3400 W 6800W (13600 W p-p). Working frequency: 40 KHz with a frequency Sweep System (Sweep System ±2). 4 submersible emitters of 1700W each. AISI 304 stainless steel tank, 2.5 mm thick.
Download the complete technical features

Grinding workshops Turbocharger workshops Engine rebuilding work Heavy machinery Marine
