WeldMIC acoustic sensor for welding from XIRIS Automation Inc

Acoustic sensors

“ - Sound recording (frequency 50Hz to 20KHz) encoded on XVC video in .AVI format - WeldStudio software compatible - 120dB sound dynamics - Audio control functions with preamplification, gain & volume control, recording, 10 band EQ - Rugged design optimized for welding environment ”

Ask for a quote

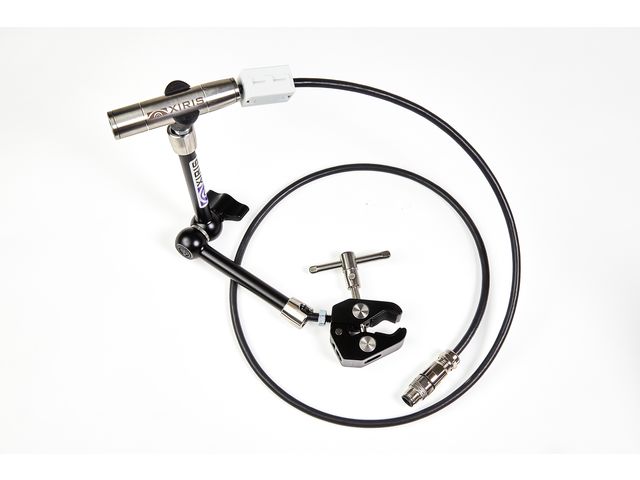

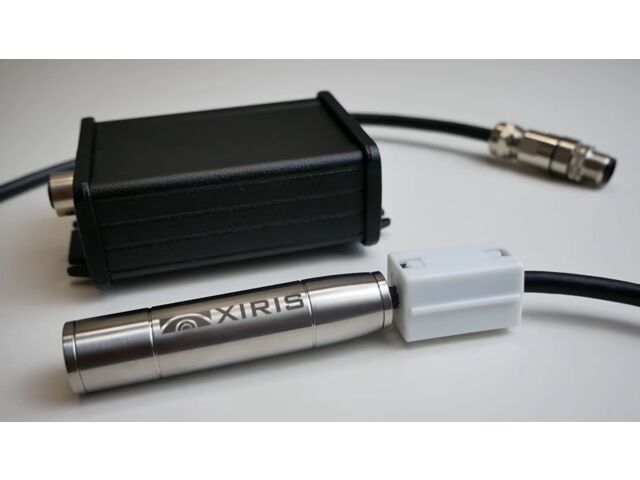

Designed by Xiris Automation Inc. the WeldMIC microphone is an acoustic sensor designed to capture welding sounds in noisy manufacturing environments. It complements XVC vision cameras.
Using a directional cardioid pick-up pattern with noise reduction features, the WeldMIC records sound clearly and reliably while eliminating unwanted background noise and interference. It offers manufacturers another sensory input, sound, to help them remotely monitor and fine-tune the welding process.

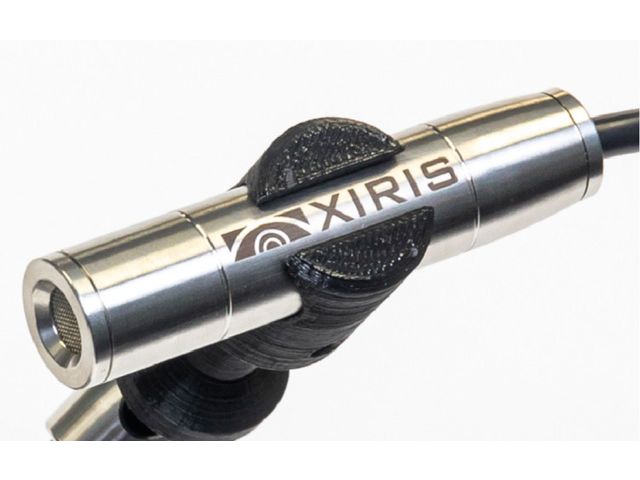

Featuring a rugged stainless steel body, robust cables and optimized internal pre-amplification electronics, WeldMIC is built to last in harsh welding environments. It is typically mounted close to the camera or close to the welding process.
A replaceable acoustic sleeve is also supplied to protect the microphone from excessive welding splatter or fumes.

Technical features

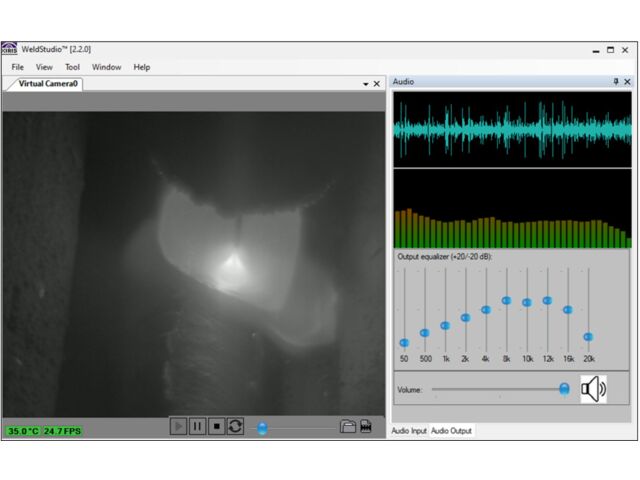

Frequency response: 50Hz-20KHz Dimensions: 18mm diameter x 80mm length Weight: 95g Audio output 3.5mm TRS Audio Jack Compatible with WeldStudio software Dynamic Sound 120dB Power consumption 2W Max 10 frequency bands EQ, gain & volume control Cable with M12 connector (10, 20, 30, 40 or 50 meters) CE, FCC-B, RoHS compliant
