XVC-750T HDR vision camera for TIG, MIG, and laser welding

Camera for industrial vision

“ - Image quality (1280x1024 pixels, 140dB, 55Hz) - Different angle versions (0, 15, 60, 90 degrees) - 8 or 12-bit output on PoE - Withstands temperatures up to 80°C or 260°C (with optional housing) ”

Ask for a quote

Presentation

The Xiris NIR welding camera system offers unmatched welding image quality,
clearly capturing the wire, electrode, welding arc, molten pool, cooling bead, and background.

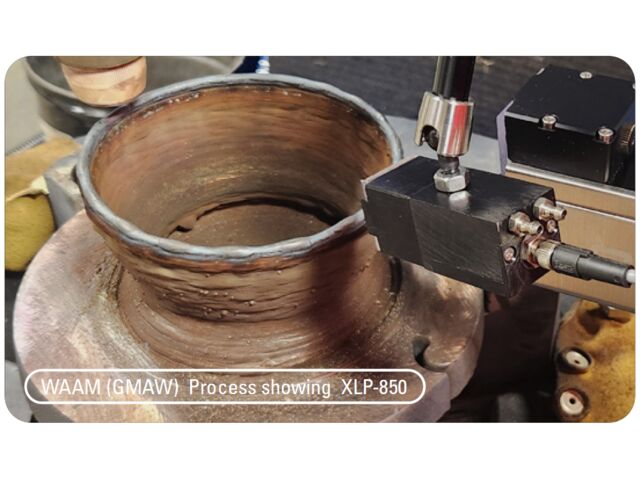

Designed for monitoring and inspecting open arc welding (including MIG/MAG or TIG processes) and laser welding, it features the XVC-750T HDR camera and XLP-850 lighting, making it ideal for additive manufacturing, production welding, automation, and research.

Unlike laser systems, it uses near-infrared lighting that is completely safe for the eyes, eliminating laser hazards and interference in robotic welding.

Designed for automation, the vision equipment is controlled via Xiris WeldStudio™ software,
which allows image adjustment, recording, playback, and integration with automated welding systems.

Technical features

Resolution 1280x1024 pixels Dynamic range 140dB Frame rate 55Hz 8/12-bit monochrome output via PoE Working distance 100 to 300mm Synchronizable camera Different angle versions (0, 15, 60, 90 degrees) Maximum temperature 80°C or 260°C (with optional housing) CE, FCC, RoHS certification
