Airspray Paint Pump : 02C85

Paint pumps and paint application products

Vote

Ask for a quote

Presentation

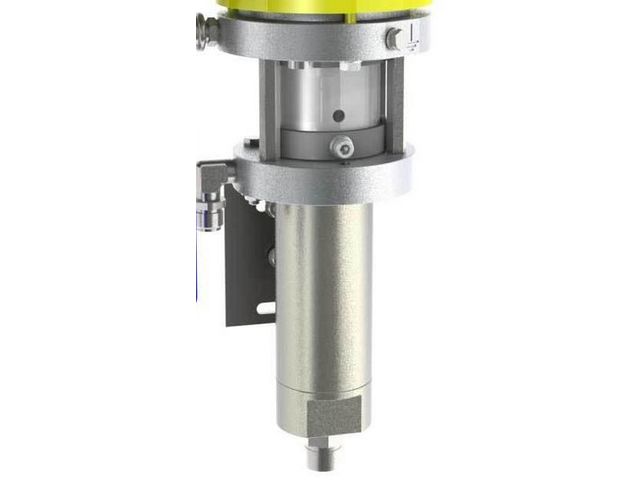

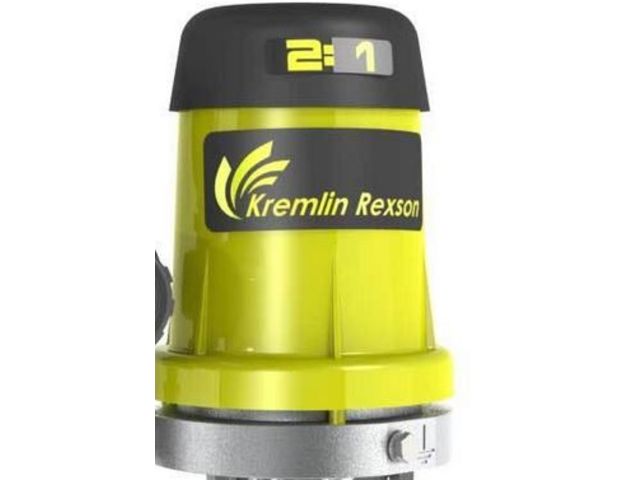

The 02C85 is our most compact pump using the Cup technology. It is an ideal solution to integrate and can feed one or several guns to spray medium viscosity coatings

Compact Design: easy to integrate into a finish workshop
Rugged - high sealing capacity seals: compatible with a wide range of materials
Can be used on a heated circulation system

Performance

Ultimate pump for priming & flushing
Treated fluid section compatible with water-based materials

Productivity

Large foot valve for use with wide range of materials with a viscosity of up to 2,000 cps
Less waste during flushing

Sustainability

Air motor with 45% less spare parts
Reliable operation due to the use of upper spring loaded GT packing
Improved abrasion resistance & low friction due to the use of chrome treated stainless steel

Technical features

Pressure Ratio: 2 : 1 Maximum Fluid Pressure: 10 (144.9) bar (psi) Maximum Air Pressure : 6 (87) bar (psi) Weight : 5 (11) kg (lbs) Maximum Temperature : 60 (140) °C (°F) Cylinder : 85 (2.9) cc (oz) Sound Level : 81 dBa Fluid Output at 30 cycles/mn: 2.6 (0.7) l/min (gal/mn) Free Flow Rate : 5.1 (1.3) l/mn (gal/mn) Air Consumption at 30 Cycles/mn at 4 Bar (60 psi) : 43.2 (25.4) m³/h (cfm)

Download the complete technical features
