American casing (temperature 15 °C - 25°C) : ISO / ISO+

Fields of application

Pharmaceuticals, diagnostic specimens, biological samples, organs, tissues, reagents, food, etc… requiring transportation of < 24 hours in controlled temperatures.

Features

ISO and ISO + solutions are made in Isostrat.

ISOSTRAT, invented and developed by ISOVATION in 1990, allowed for the development of the first foldable, insulated packaging systems. These ISOVATION packages reduced the performance and logistics costs of the cold chain significantly, with economies of more than 80% in terms of transport and storage volume..

ISOSTRAT is made up of three elements :

• A lining : metallized PET, natural kraft or calendered kraft

• An XPS core (extruded, expanded polystyrene)

Food quality XPS is a 100% recycled product, part of an overall approach to industrial environmental protection led by ISOVATION since its inception.

Virgin XPS can be supplied on demand, with thickness varying from 2 to 5 mm.

• An exterior coating :

Metallised PET, natural or calendered kraft.

ISOSTRAT is custom made for each package. The assembly of the three components stems from specification requirements. The ISOSTRAT achieves high BTP (Barrier Thermal Protection) levels and is very economical. These BTP significantly reduce packaging time.

- ISOSTRAT thermal conductivity (λ = W/(m.K))

λ = 0,031

- ISOSTRAT thermal resistance (Rm = m².K/W)

Rm = 0,495

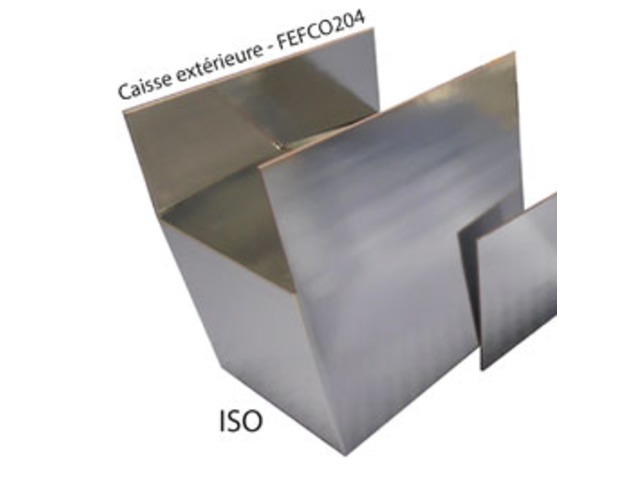

ISO Solution : American casing, Isostrat aluminized interior/exterior, thickness 2-5 mm, with jointed flaps (FEFCO 204).

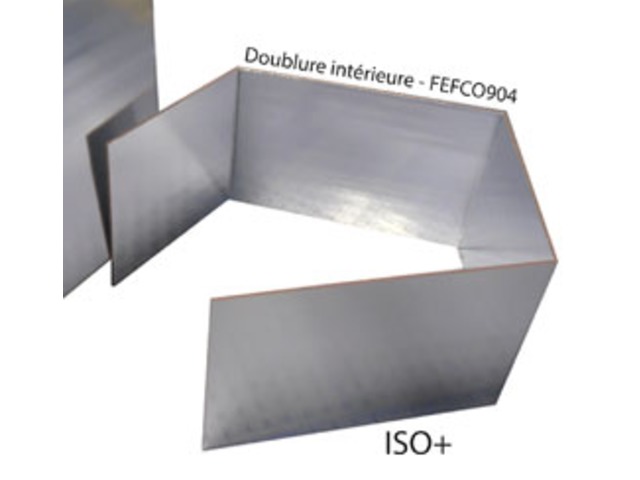

ISO + Solution : American casing, Isostrat aluminized interior/exterior, thickness 2-5 mm, with jointed flaps and inner lining in Isostrat (FEFCO 204 + 904), with or without internal wedging.
