Capacitance Level measurement | Liquicap FMI51 ENDRESS+HAUSER SAS

Capacitance Level measurement | Liquicap FMI51

Level sensors

Vote

Rm9yIGNvbnRpbnVvdXMgbGV2ZWwgYW5kIGludGVyZmFjZSBtZWFzdXJlbWVudCBpbiBsaXF1aWRzLiBMaXF1aWNhcCBGTUk1MSBpcyBhIHJlbGlhYmxlIGZ1bGx5IGluc3VsYXRlZCByb2QgcHJvYmUgZm9yIGNvbnRpbnVvdXMgbGV2ZWwgbW9uaXRvcmluZyBpbiBsaXF1aWRzLCBwYXJ0aWN1bGFybHkgaW4gYnVpbGQtdXAgZm9ybWluZyBtZWRpYSBhbmQuLi4=

Buy on supplier's website Receive Documentation Ask for a quote

OTHER PRODUCTS FROM ENDRESS+HAUSER SAS

Check out all the products from ENDRESS+HAUSER SAS

USERS WHO SAW THIS ALSO VIEWED

For continuous level and interface measurement in liquids.

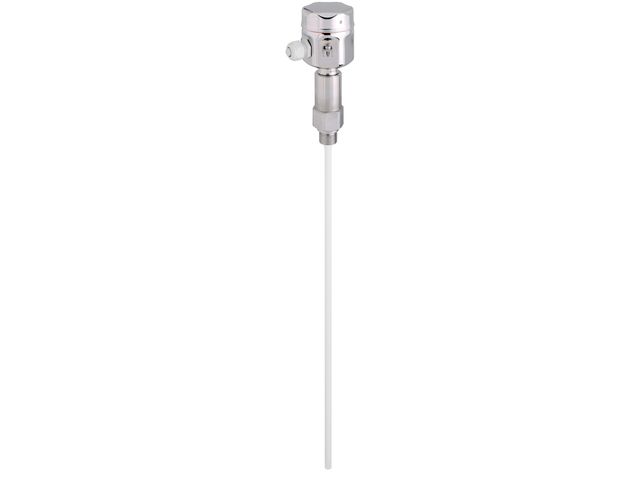

Liquicap FMI51 is a reliable fully insulated rod probe for continuous level monitoring in liquids, particularly in build-up forming media and extremely high temperatures.

The measurement is independent of the dielectric constant (dc). Used in conjunction with Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.


• Use also in safety systems requiring functional safety to SIL2 in accordance with IEC 61508

• Reliable and universal application thanks to wide range of certificates and approvals

• No calibration necessary (factory preconfiguration). No calibration necessary for media with a conductivity of 100μS/cm and higher

• Material in contact with the process made of corrosion-resistant material, FDA-listed materials

• Menu-guided local configuration via plain text display (optional)

• Two-stage overvoltage protection


The device is independent of the dielectric constant (dc) as of a liquid conductivity of 100μS/cm and allows measurement of various liquids without the need for recalibration.

• Process connections: Flanges and threads

• Process pressure: Vacuum to +100bar (vacuum to +1,450psi)

• Measuring range: 0.1 to 4.0m (0.3 to 13ft)

• Temperature: -80 to +200°C (-112 to +392°F)

• International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals

Continuous / Liquids Measuring Principle Capacitive Characteristic / Application : Fully insulated rod probe, for standart- and extreme process conditions (temperature, pressure, build up) Interface measurement : Interfaces liquid / liquid also with emulsion layers Supply / Communication : 12-36V DC HART PFM Accuracy : Repeatablity 0,1% Linearity error for conductive liquids : <0,25% Ambient temperature : -50°C...+70°C -58°F...+158°F Process temperature : -80°C...200°C -112°F...392°F Process pressure absolute / max. overpressure limit Vacuum ... 100 bar (Vaccum ... 1450 psi) Main wetted parts : Insulation material: PTFE,PFA 316L
Download the complete technical features
