Radar measurement | Time-of-Flight Micropilot FMR20

Level sensors

Vote

“ - Non-contact radar with commissioning via HART or wireless via Bluetooth® app or with remote display - Most compact radar due to unique radar chip design offering perfect fit in limited space applications - Best price-performance-ratio radar - Perfect application fit for water & wastewater and utilities in all industries (IP66, 68 / NEMA4x, 6P) - Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions - Easy setup with three main parameters suits for most applications - Simple, safe and secure wireless remote access via Bluetooth® – even in hazardous areas or places difficult to reach ”

Ask for a quote

Presentation

Level measurement in liquids for water & wastewater and utilities in all industries

Micropilot FMR20 offers continuous non-contact level and flow (via linearization table) measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries.

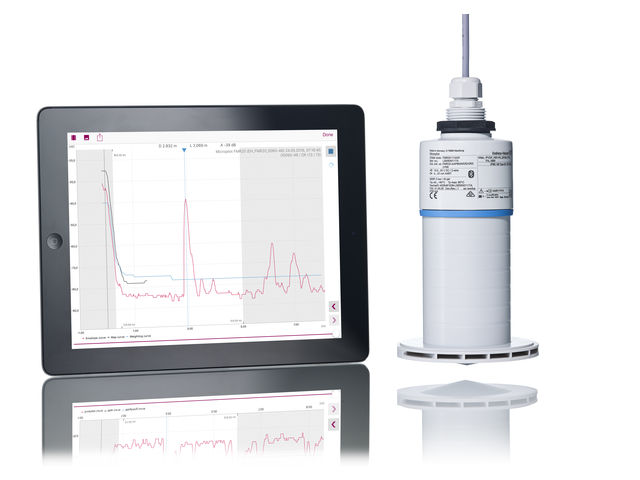

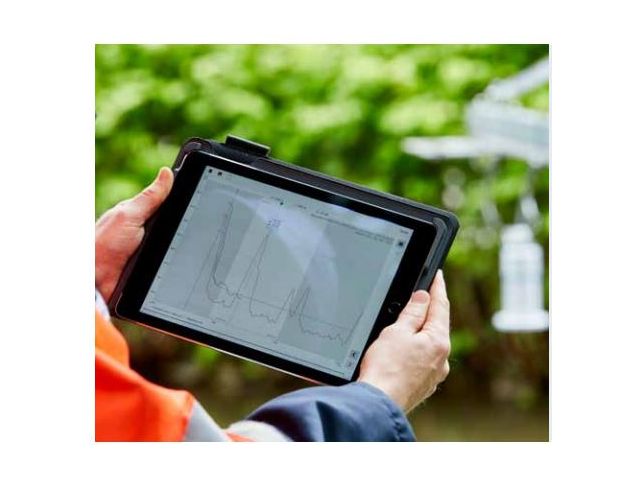

Commissioning is possible via HART or wireless via app using Bluetooth® or with remote display. Signal curves can be shown via app on every Bluetooth®-enabled smartphone/tablet (iOS, Android).

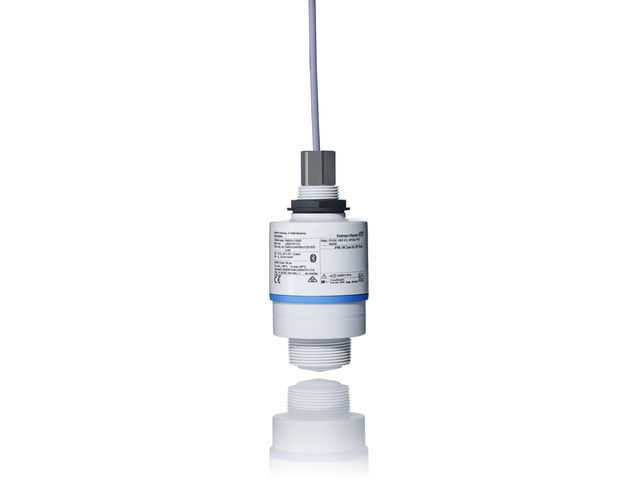

With the compact design, thanks to unique chip, the device is ideal for limited space applications.

Technical features

Measuring Principle : Level radar Process connections : Threads, flange versions Process temperature : -40 to +80°C (-40 to +176°F) Process pressure : -1 to +3bar (-14.5 to +43psi) Max. measuring range : 20m (66ft) Accuracy : ±2mm (0.08'') Measuring frequency : 26GHz International explosion protection certificates Max. measurement distance : 10m (DN40) / 20m (= >DN80) Communication : 4...20mA HART / Modbus / Bluetooth® wireless technology

Download the complete technical features

Usage scope

Radar for continuous level measurement and flow measurement (with open channels or weirs, via linearization table) in liquids For use in storage tanks, open basins, pump/lift stations or sewer management
