Compact solution for gravity-roller conveyers | NUCLEUS NUCLEUS

Compact solution for gravity-roller conveyers | NUCLEUS

Ultrasound welding machine

Vote

Ask for a quote Receive Documentation Contact the supplier

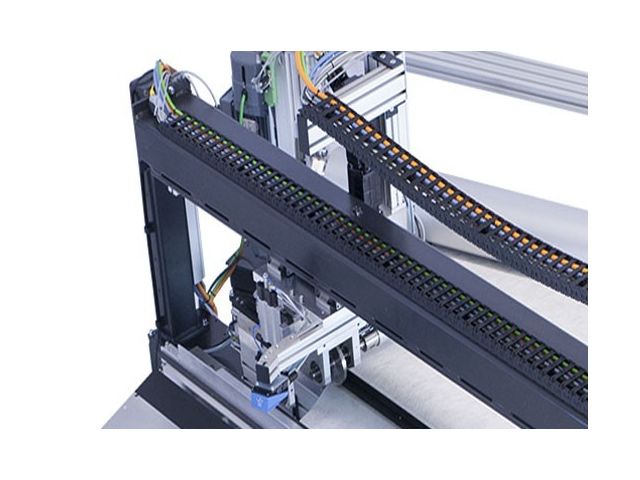

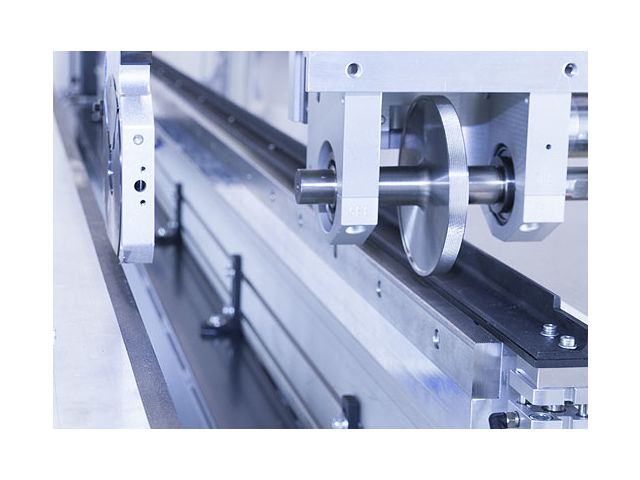

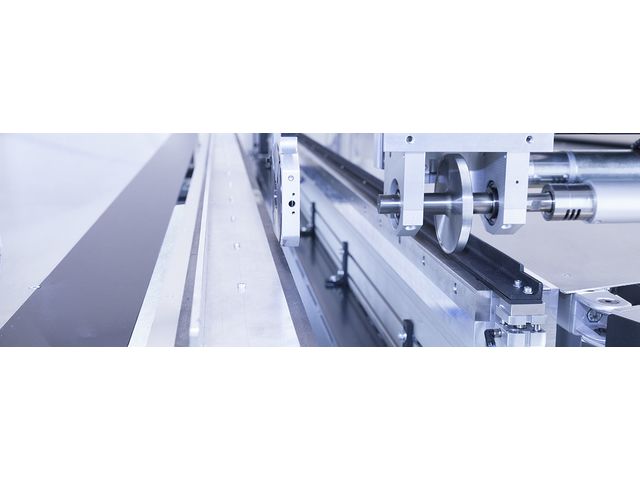

The NUCLEUS Splice Unit is a compact solution to combine or to attach gravity-roller conveyers. With this solution the seam can be implemented as more overlap welding as well as welding with simultaneous cutting. The two material panels are introduced into the installation from above, then the material is automatically clamped and the welding process starts. Width of the material and welding process can be regulated individually. It is standard that all splice installations are equipped with automatic sonotrode abrasion reduction.

Ultrasonic frequency : 35kHz Ultrasonic generator : NUCLEUS digital generator DG1 400W Sonotrode TC12: 12mm wide cutting sonotrode Contact pressure : Digital NUCLEUS press unit with 600 N contact force (without air pressure) Speed : max. 24,3 m/min Number of drives : 2 Schweißbreite max. : 12 mm Handling of the machine : 11“ Multi-Touch-Display Power supply : 230 V, 50 Hz reversible to 110 V, 60 Hz
