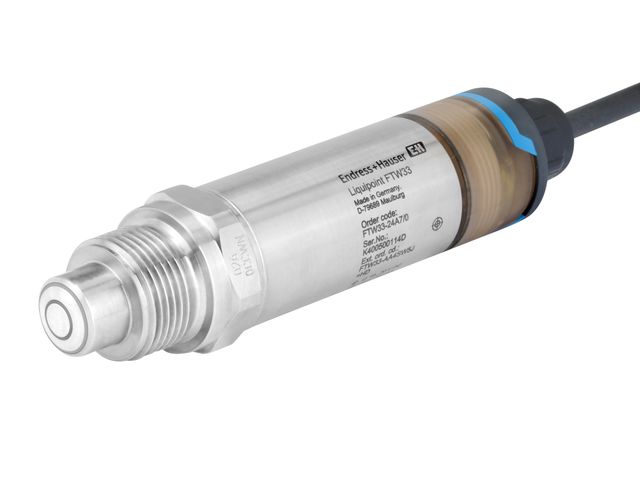

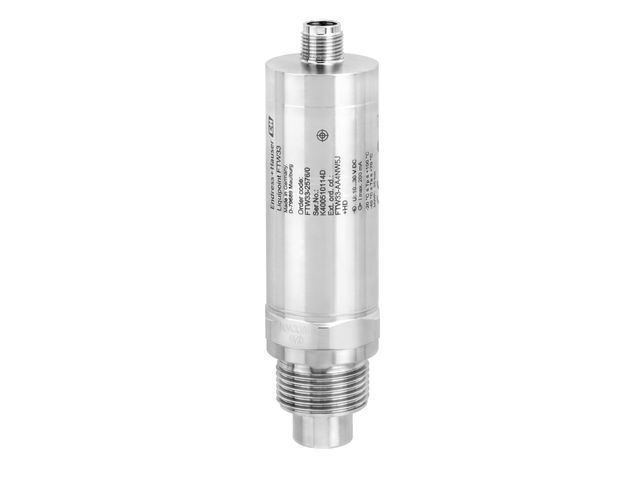

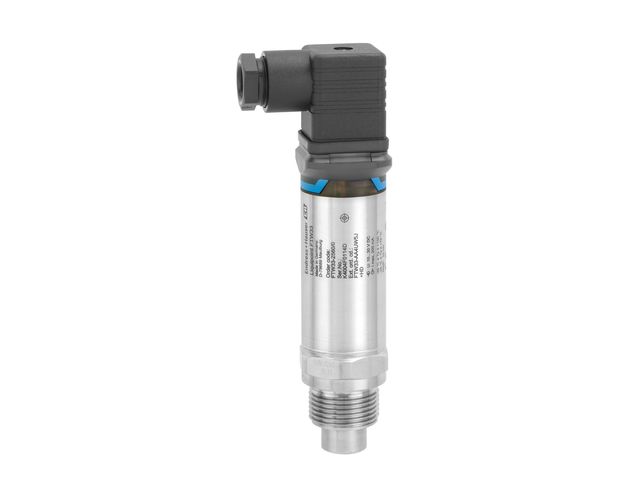

Conductive Point level detection | Liquipoint FTW33

Level sensors

Vote

“ - Perfect fit to the hygienic industry thanks to flush-mounted design, which allows pigging of pipes - Safe and reliable measurement due to build-up compensation, ensuring reliable switching; IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems - Individual adjustment to each medium not necessary - Easy installation thanks to compact design, even in tight conditions or where access is restricted - Broad range of process connections for installation in new and existing plants - CIP and SIP cleanability ensured - up to protection class IP 69 - LED display for on-site function check ”

Ask for a quote

Presentation

Very compact flush-mounted probe for liquid and pasty media

The Liquipoint FTW33 is developed for the food industry and meets all international hygiene requirements. The device also fits perfectly for applications in all industries. For use in pasty and sticky media and media with heavy build-up.

Advanced :

- Oil and water based fluids and sticky media
- Real flush-mounted

Reliable :

- Active build-up compensation
- Function check with test magnet

Easy :

- No calibration or adjustment required
- Plug & play without any specific tools
- IO-Link connectivitybuildup occurs on the sensor.

Technical features

Measuring Principle: Conductive Process connections: Threads and hygiene connections Sensor length: Flush-mounted Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 150°C (302°F) for 1 hour Pressure: 0 to 25bar abs (0 to 362,5psi abs) Hygienic certificates Supply / Communication: 10…30 V DC

Download the complete technical features

Usage scope

For use in pipes and in storage, mixing and process vessels with or without an agitator For liquids with electrical conductivity >1 μS/cm or dielectric constant >2 Developed for the food industry Detection of foam occurring within the food industry possible
