CTEX electropneumatic leak test chamber

Leak testing

Vote

“ Compact Digital Programmable Logic Controller ”

Ask for a quote

Presentation

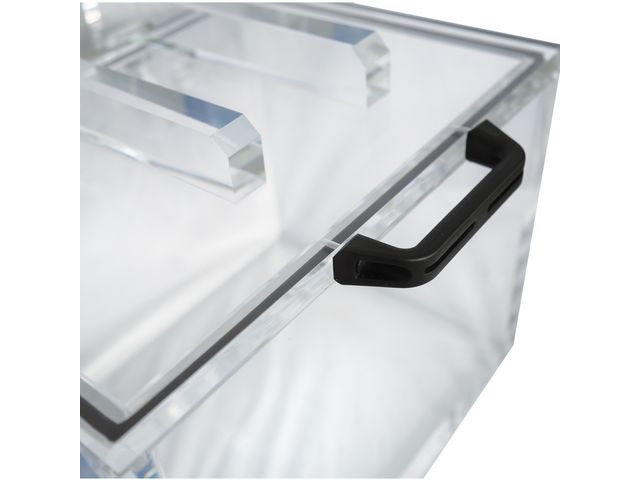

The CTEx is a digital vacuum chamber that allows you to test, by vacuum, the tightness of packaging containing liquid or semi-viscous products such as vials or bottles directly on the edge of the production line with total visibility, thanks to its Plexiglas design.

Composed of an enclosed electro-pneumatic system that, powered by compressed air, creates a pressure difference between the inside and outside of your sample. When purchasing a chamber, you can choose between a door opening or a cover opening.

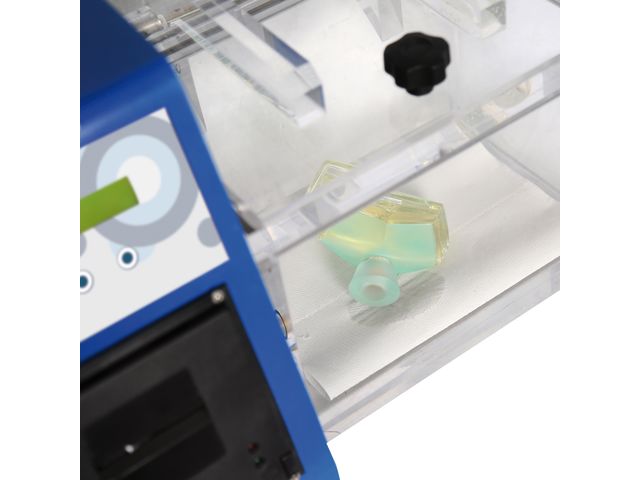

For the dry test, you need to lay your sample down so that the cap is immersed from the inside. We will observe a flow of fluid on a blotting paper during this test in case of a leak. The handling is very simple, and you will see the result quickly with the naked eye.

This electronic version allows you to set up 8 different programs for specific tests and to cycle between these programs.

Technical features

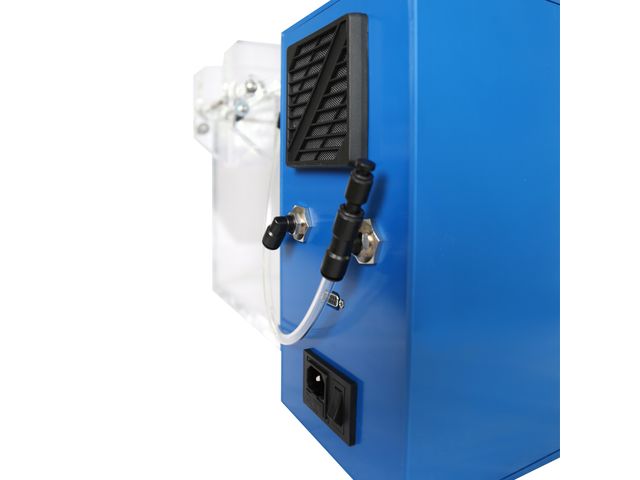

Normes: ASTM D4991, ASTM D5094, ASTM D4169, EN 14401, DIN55528 (Part 1, 2, 3, 4, 5) Connection to compressed air with a pressure relief of 6 bars by means of an 8 mm diameter rislan connection. Maximum depression of - 850 mbar Model with vacuum pump up to -920 mbar. Complex pre-programmable cycles possible Validation of the conformity of the test on time-stamped ticket or by data transfer with Dataxport software compact, USB, desktop, with PLC, single station Vacuum type, digital, electropneumatic

Download the complete technical features
