Leak Tester T8990

Leak testing

“ - Universal absolute pressure decay leak tester - Measurement accuracy 0,1 Pa - Extreme test quickness ”

Ask for a quote

The T8990 leak test instrument is the best the market has to offer for your leak test.

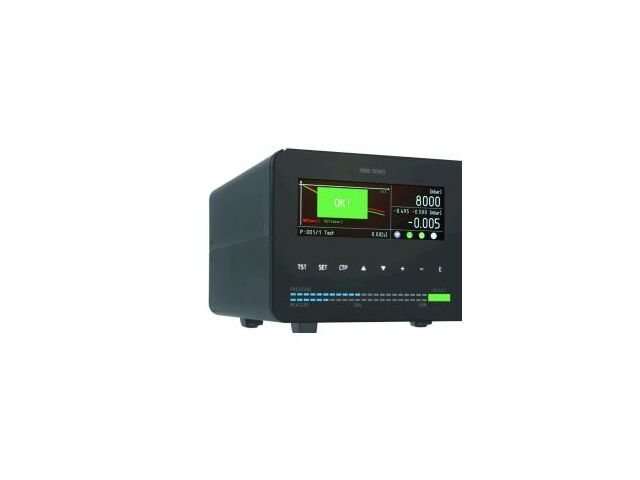

The new 'ForTest MMI' video controller has taken human-machine interaction to the next level, thanks to an innovative capacitive tempered glass panel surrounding a stunning 6.2" colour display.
Parameter programming is much faster thanks to the new numerical keyboard integrated in the menus, and the large display makes the test cycle even clearer.

The leak test cycle has been further speeded up thanks to the integration of processor and coprocessor, while maintaining the reliability that has always distinguished ForTest.
We can say with certainty that T8990 has the most advanced measurement section in the world.
This results in a true measurement resolution of 0.1 Pa at 1 bar (0.5 Pa at 6 bar) that is stable and free of noise.

The equipment of the new T8990 includes slave USB, RS232, RS485, Profinet, EtherNet IP and EtherCAT ports. An Ethernet port and a 26-pin connector with 4 inputs and 8 fully programmable outputs for interfacing to external valves, safety barriers, switches, etc. can be optionally mounted.
A master USB port is mounted on the front panel for connection of a USB stick that allows storage of tests performed, backup/restore of parameters and updating of instrument firmware.
Connection to thermal printers, bar-code/data-matrix readers and markers is automatic via internal menu.
